Izvedba
Profile type
- Type N: Light, 2 sides closed, offset by 90°
Aluminij
Anodized, natural color N
Informacije

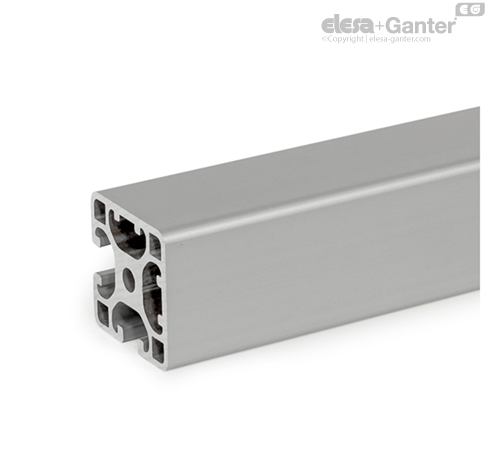

Aluminum profiles GN 11i with partially closed slots are produced by extrusion molding. They can be used, for example, to easily construct protective enclosures, workplace equipment or partition walls, when an attractive appearance is required.
Aluminum profiles in combination with the removable and reusable accessories form a flexible modular system. Attachments can be fastened to either the slots or the end faces via the holes.
The closed profile sides facilitate cleaning. The profile type light is typically used for small loads or for weight-optimized constructions.
Aluminum profiles are supplied in bundles. The table shows the quantity included in each bundle.
Mechanical Data (in Extrusion Direction)
- Material: Al Mg Si 0.5 F25 (EN AW – 6063)
- Delivery condition: Artificially aged
- Anodized coating: E6EV1 (natural color), layer thickness: 10 μm
- Dimensional deviations as per DIN EN 12020-2
- Tensile strength Rm min. 245 N/mm²
- Yield point Rp0,2 min. 195 N/mm²
- Density 2.7 kg/dm³
- Linear expansion coefficient 23,6x10-6 1/k
- Modulus of elasticity E ≈ 70,000 N/mm²
- Hardness ≈ 75HB -2.5/187.5
Permissible Tensile Load on the Slot
| n | Grid size | Profile type | FN* in N |
| - | - | - | With T-Nuts GN 50i |
| - | - | - | Type N | Type V | Type S |
| 6 | 30 | Light | 3000 | 3000 | - |
| 8 | 40 | Light | 7500 | 5500 | - |
| 8 | 40 | Heavy | 15000 | 15000 | 19000 |
* Depending on the thread size of the T-nut
Cross-Section Properties
Wx, Wy = Axial resistance torque against bending
lx, ly = 2nd moment of area against bending
lt = 2nd moment of area against torsion
A = Cross-section area
m = Length-related mass
| GN 10i Profile type light |
| s1 | s2 | n | Grid size | Bending axis x-x | Bending axis y-y | lt | A | m ≈ |
| - | - | - | - | lx in cm4 | Wx in cm3 | ly in cm4 | Wy in cm3 | in cm4 | in cm2 | in kg/m |
| 30 | 30 | 6 | 30 | 2.9 | 1.94 | 2.9 | 1.94 | 0.3 | 3.43 | 0.93 |
| 30 | 60 | 6 | 30 | 21.2 | 7.07 | 5.54 | 3.69 | 3.18 | 6.13 | 1.65 |
| 60 | 60 | 6 | 30 | 39.5 | 13.2 | 39.5 | 13.2 | 21.5 | 10.0 | 2.7 |
| 40 | 40 | 8 | 40 | 9.1 | 4.55 | 9.1 | 4.55 | 1.36 | 6.47 | 1.75 |
| 40 | 80 | 8 | 40 | 70.2 | 17.6 | 16.8 | 8.45 | 9.94 | 11.3 | 3.08 |
| 80 | 80 | 8 | 40 | 130.1 | 33.2 | 130.1 | 33.2 | 80.8 | 19.3 | 5.17 |
| GN 10i Profile type heavy |
| s1 | s2 | n | Grid size | Bending axis x-x | Bending axis y-y | lt | A | m ≈ |
| - | - | - | - | lx in cm4 | Wx in cm3 | ly in cm4 | Wy in cm3 | in cm4 | in cm2 | in kg/m |
| 40 | 16 | 8 | 40 | 1.06 | 1.25 | 6.75 | 3.37 | 0.97 | 4.15 | 1.12 |
| 40 | 40 | 8 | 40 | 13.9 | 6.95 | 13.9 | 6.95 | 1.88 | 9.05 | 2.45 |
| 40 | 80 | 8 | 40 | 101.0 | 25.2 | 26.7 | 13.4 | 18.8 | 16.5 | 4.51 |
| 80 | 80 | 8 | 40 | 187.8 | 46.9 | 187.8 | 46.9 | 128.4 | 26.7 | 7.2 |
| GN 11i Profile type light |
| s1 | s2 | n | Grid size | Bending axis x-x | Bending axis y-y | lt | A | m ≈ |
| - | - | - | - | lx in cm4 | Wx in cm3 | ly in cm4 | Wy in cm3 | in cm4 | in cm2 | in kg/m |
| 40 | 40 | 8 | 40 | 9.63 | 4.96 | 9.63 | 4.96 | 5.41 | 6.79 | 1.83 |
