Specification
Types
- Type A: with contrast screen, blank
- Type AS: with contrast screen, black anodized
- Type B: without contrast screen, blank
- Type BS: without contrast screen, black anodized
Body
Aluminium
- Type A and B: fine turned, blank
- Type AS and BS: fine turned, black anodized
Contrast screen
Technopolymer (Polysulfon)
- temperature resistant up to 100 °C
- Sealing ring rubber NBR (Perbunan)
Information

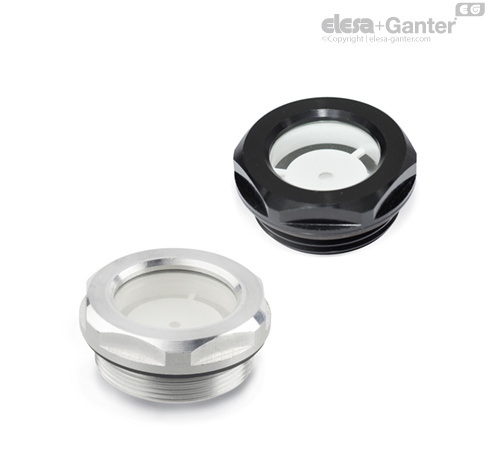

Oil level sight glasses GN 743 offer genuine glass of high stability and scratch proof. The sealing is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.
The outside diameter of these oil level sight glasses with recessed hexagon is chosen to match mounting holes for tube connections according to DIN 3852.
The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened.
Oil level sight glasses GN 743 can be used on pressurised oil tanks. Tests regarding maximum pressure are available on request.
Assembly instruction:
For mounting on walls of less than 4 mm thickness please use a fixing nut GH.-.
- RoHS compliant (only types AS and BS)
