Specification
Types
- Type B: High design, with stainless steel cap
Valve body
Brass MS
Kroglica
Steel AISI 5210
Vzmetni
Stainless Steel AISI 301
Seal DIN 7603 A
Soft iron 1.0338
(for d1 = M10 x 1:PA6)
Breather cap (Type B)
Stainless steel AISI 304
Temperature resistant from -30 °C to +200 °C
Information

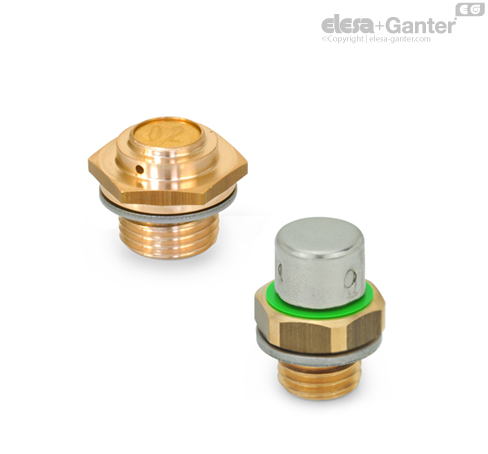

Once the opening pressure given in the table is exceeded, GN 883 breather valves will vent into a container and so protect against excessive inside container pressure. They also feature highly compact dimensions.
A coding (Type A) or a color ring (Type B) in yellow (20 - 80 mbar) or green (160 - 240 mbar) indicates the different opening pressure ratings.
The simple function principle (pressure spring / ball) ensures long and trouble-free use of the valve acting to one side. The installation position is vertical to the top.
