GN 139.5

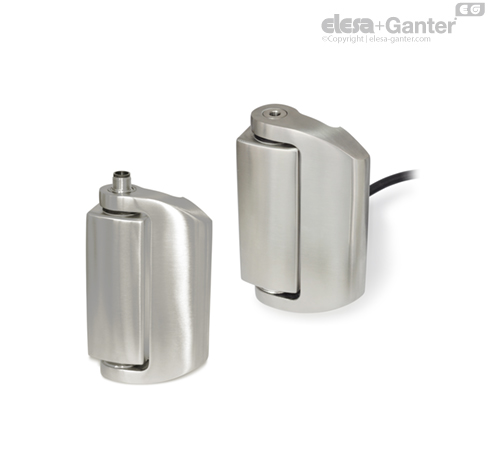

Hinges with safety switch

Hinges GN 139.5 with integrated safety switches have been designed for monitoring doors and covers of machines and plants. Opening the door will activate the switch contacts which, in turn, will then e.g. interrupt a protective circuit via break contact (NC) and at the same time signal the door opening by closing a normally open contact element (NO). The contact blocks are fitted with positive opening slow-action contacts, i.e. they will definitely be separated when activated and have no hysteresis. The angle at which the switching points are reached are adjustable.

Together with the integrated contact blocks, the hinges are a compact, easy to mount unit with an attractive design. The mounting from the back make the hinge more tamper-proof. Hinges GN 139.6 without switching function act as additional hinges, e.g. for larger doors or gates where several hinges are required.

• Operating instruction GN 139.5

• Stainless Steel characteristics

• Load rating information of hinges

Cable with connector coupling

8-pole, 5 or 10 meter long:

• Cables with conntector coupling GN 330 -M12x1-8-G-5.

• Cables with conntector coupling GN 330 -M12x1-8-G-10.

• Hinges with operating angle > 0°

• Hinges with other contact loadings

Approvals, Conformities, Applicability
Low-voltage switchgear and controlgear				EN 60947-1/2007
CE declaration				EN 60947-1-5 : 2004 +
EAC and UL certified				A1/2009
Safety applications	up to SIL 3 / PL e		acc. to EN ISO 13849-1

Other important details and hints are given in the operating instruction for GN 139.5 which is included with every delivery and which is also available as PDF downloads from „www.elesa-ganter.com“ under ‚Downloads‘.

The hinges with safety switch must be mounted and commissioned by qualified technical personnel in compliance with the details given in the operating instructions and with the national and international rules and regulations and the applicable standards. Elesa+Ganter will assume no statutory liability for missing or incorrect information and for any consequences arising therefrom.
