Izvedba
Oblika
- Type R: With indexing plunger

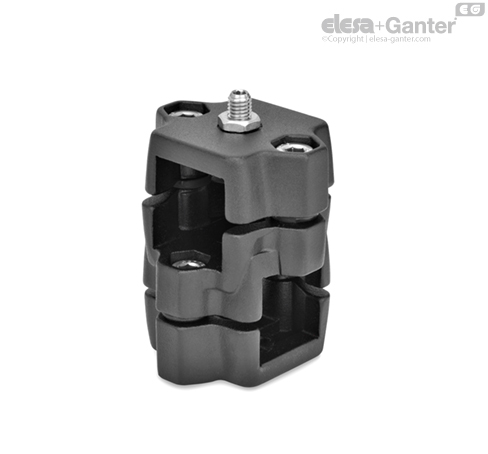

- Type D: With spring plunger
Aluminij
s prevleko iz umetne mase
črna, RAL 9005, teksturirano mat SW
Fastening elements / Transfer elements
- Socket cap screws DIN 912
Plemenito jeklo 1.4301
Indexing plunger GN 717, type CK
Spring plunger GN 615.9, type KN
- Ball with friction bearing
- Stainless steel lock nut ISO 4035
Informacije
With two-way locking slide units GN 134.7, recurring positions along a square construction tube can be moved to easily and quickly. The required holes for type R or countersinks for type D can be created by the user according to the design instructions or ordered as completely finished construction tubes with locking holes GN 990.1 .
For quick clamping without tools, the socket cap screws at the locations z, can be replaced with adjustable hand levers GN 911 kot je navedeno v tabeli z dodatno opremo Centering bushings in the pass-through holes eliminate the axial play between the top and bottom parts of the locking slide units.
Two-way locking slide units GN 134.7 are delivered with unmounted indexing plunger (Type R) or spring plunger (Type D). Type G with thread is universally suitable for specific applications.
Construction information
The square dimensions of the locking slide units are designed for construction tubes GN 990. These can be fitted with locking holes (B or S) by the user according to the dimensions specified in the table.
Construction tubes with locking holes can be ordered as standard part GN 990.1 cut to length and completely ready for installation.
| S Square V | d6 + 0.3 Bore B (for type R) | d7 +0.3 Countersink S (for type D) | For locking slides |
| V 25 | B 5 | S 2.5 | V 25 |
| V 30 | B 5 | S 2.5 | V 30 |
| V 40 | B 8 | S 4.5 | V 40 |
| V 50 | B 8 | S 4.5 | V 50 |
