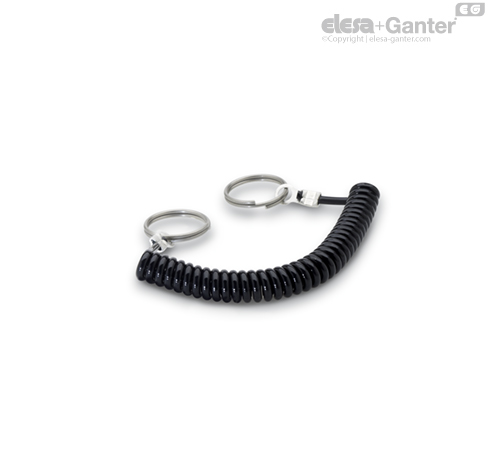

Spiral retaining cables GN 111.4 are used in connection with low weight elements e. g. pins with axial lock and ball lock pins.
They are distinguished for a large „usalbe length“ l2.
The key rings are supplied unmounted. Both rings have the same Ø d1.
The details on static loads are guide values given without warranty.
Ideal suitable for ball lock pins and locking pins with axial lock:
| Ideal suitable for ball lock pins and locking pins with axial lock with pins Ø: |
| d1 | GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10 | GN 113.5, GN 113.6 | GN 113.11, GN 113.12 | GN 114.2, GN 114.3, GN 114.6 | GN 114.7, GN 114.8 | GN 114.11, GN 114.12 | GN 124.1, GN 124.2 | GN 124.3 | GN 214.2, GN 214.3, GN 214.6 | GN 314 |
| 14 | 5 / 6 / 8 | all | 5 / 6 / 8 / 10 | all | 6 / 8 | 6 / 8 / 10 / 12 | all | 2024-10-08 | 6 / 8 | - |
| 18 | 10 / 12 / 16 / 20 / 25 | - | 12 / 16 | - | 10 / 12 / 16 / 20 | 16 / 20 | - | 10 / 12 | 10 / 12 / 16 / 20 / 25 | 8 / 10 / 12 |
| 24 | - | - | 20 / 25 | - | - | - | - | - | - | 16 / 20 |
| 30 | - | - | - | - | - | - | - | - | - | - |
