Funkcije in uporabe

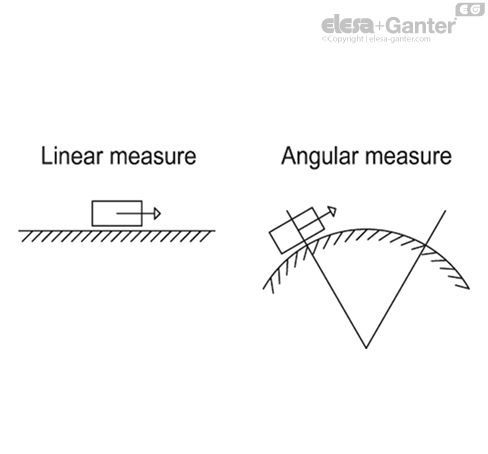

MPI-15 measuring system, made of a LCD multifunction display with built-in magnetic position sensor, combined with the magnetic band M-BAND-10 (to be ordered separately), is a complete system for the measurement of linear and angular displacement (with a minimum radius of 65 mm).
Odlikuje ga izredno enostavna montaža, omogoča natančno poravnavo in pozicioniranje, kar skrajša čas in postopke strojne obdelave na minimum.
- Multifunction LCD with 5 function keys.
- Absolute/ incremental mode.
- Programmable offset function.
- External battery power supply 1.5 VDC.
- Med zamenjavo baterije se pomnilnik ne izbriše.
- Accidental polarity inversion protection.
- Magnetic sensor envelope material: anodized aluminium.
Za dodatne informacije preberite operating instructions.
| Technical data |
|---|
| Življenjska doba baterije | 1.5 years (C-type battery) |
| Resolution(1) | 0.1 mm - 0.01 in - 0.01° |
| Precision(2) | 0.1 mm |
| Repeat accuracy(3) | 0.001 mm |
| Operating speed | max. 5 m/s |
| Samodiagnosticiranje | battery check, sensor check, magnetic tape check |
| Programmable measuring unit | millimetres, inches, degrees (angles) |
| Delovna temperatura | 0 ÷ 50 °C |
| Temperatura shranjevanja | -20 ÷ +70 °C |
| Relativna vlažnost | Največ. 95 % pri 25 °C brez kondenzacije |
| Zaščitni razred | IP40 whole device IP54 front side according to IEC 529 IP67 magnetic sensor |
| Interference protection | IEC 61000-4-2 |
(1) Resolution: the smallest change in length that the system is capable of displaying.
(2) Precision: the maximum deviation of the value measured by the system from the actual one.
(3) Repeat accuracy: the degree of closeness between a series of measures of the same sample, when the single measurements are carried out leaving the asurement conditions unchanged.
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
Magnetni trak M-BAND-10.
Posebne verzije na zahtev
Posebne verzije na zahtev
The special plate display may be supplied with customised graphic symbols, marks or writings.
Magnetic sensor with cable length different from the standard executions shown in the table, up to 20 m maximum.
