General information
Sensor
Die-cast zinc alloy nickel-plated body
Cable
Shielded cable with black PVC sheath Ø 3.5 mm, bending radius when moving ≥ 34 mm.
Connector (IP67 protection)
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
NBR rubber O-Ring.
General information
Funkcije in uporabe
Snap assembly that facilitates insertion and guarantees correct connection even in the presence of vibrations or accidental tears.
Other executions
Posebne verzije na zahtev

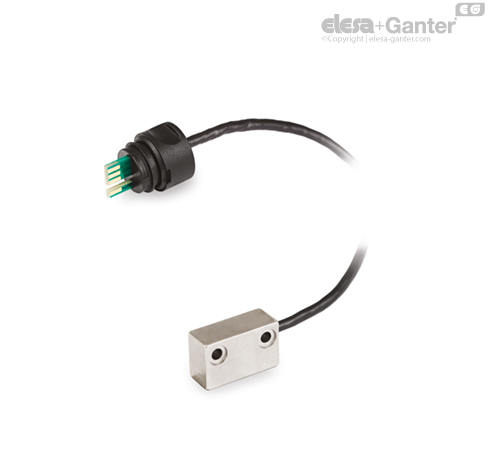

Magnetic sensor with cable of different lengths (max. 5 m).
Navodila za uporabo
Navodila za sestavljanje
- Insert the connector in the appropriate seat of the magnetic measuring system MPI-R10, and push it in until it clicks (Fig.1).
- Fix the magnetic sensor by using M3 screws (not included in the supply). Distance between sensor and magnetic band to ensure a correct reading of the displacement: max 1 mm.
Navodila za razstavljanje

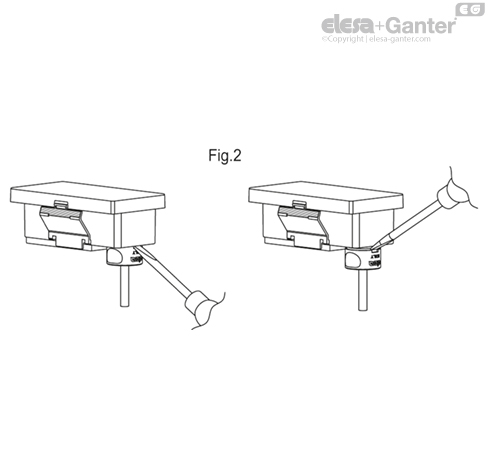

The connector can be removed simply by pulling with your fingers, gripping the appropriate notches. If necessary, use a slotted screwdriver to lever in the housing shown in Fig.2.
