Izvedba
Material

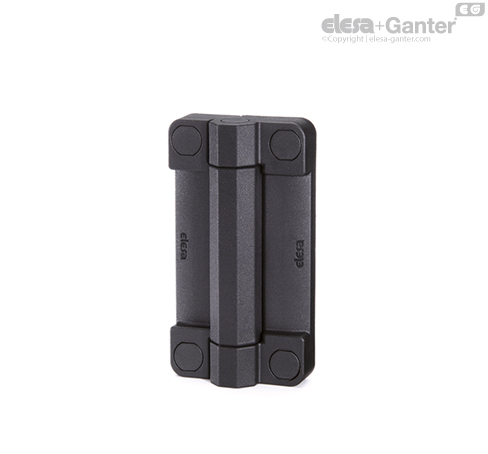

Glass-fibre reinforced polyamide (PA) SUPER-technopolymer, black or grey colour RAL 7040 (C33), matte finish.
Vrtljivi zatič
Glass-fibre reinforced polyamide based (PA) technopolymer, black or grey colour RAL 7040 (C33).
Assembly kit (see assembly):
- 425948 CFMW - KIT RICAMBIO NERO ACCESSORI
- 425949 CFMW - KIT RICAMBIO GRIGIO ACCESSORI
Vsak komplet vsebuje 4 končne pokrovčke (slika 1) in 4 puše (sliki 2 in 3) iz termoplasta.
Montaža

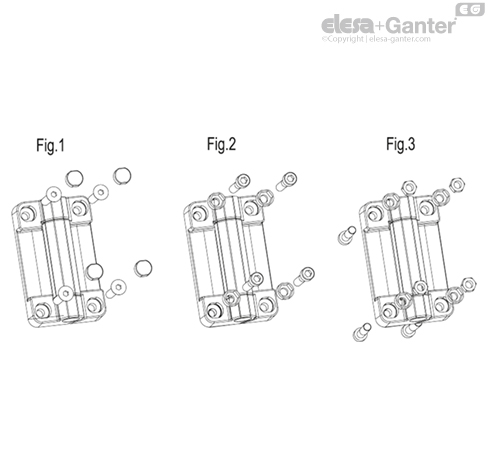

CFMW. hinge can be assembled in three different modes:
- With M6 UNI 5933 ISO 10642 countersunk-head screw (not supplied) and screw cover supplied in the kit (fig. 1) to avoid free access to screws.
- With cylindrical-head screw with hexagon socket M6 UNI 5931 ISO 4762 (not supplied) to set with the bushing supplied in the kit (fig.2).
- With M6 UNI 5588 ISO 4032 nut (not supplied) and the bushing supplied in the kit (fig.3). This kind of assembly makes the hinge totally tamper-proof preventing any tampering.
Opomba
Funkcije in uporabe
The different assembly options make this product easy to install on the most common aluminium profiles (30 mm minimum side).
CFMW. hinge can be assembled with CFSW. hinge with built-in safety switch: CFSW..

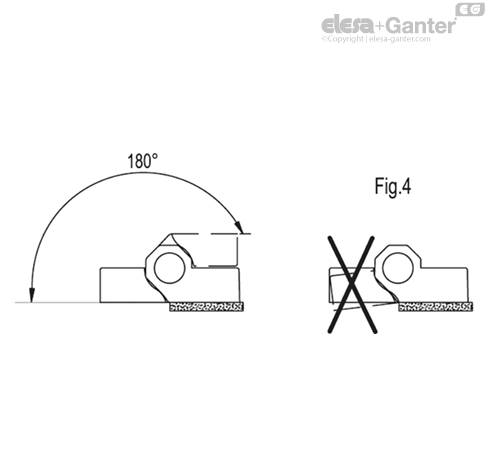

Kot vrtenja (približna vrednost)
Max 180° (0° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Omejitve kota vrtenja ne smete preseči, da ne vplivate na delovanje tečaja.
The condition where the two interconnected surfaces are on the same plane is to be strictly verified because the hinge must not be stressed by any negative angle (fig.4).
Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.
| Testi upornosti | AKSIALNA OBREMENITEV | RADIALNA OBREMENITEV | OBREMENITEV POD KOTOM 90° |
 |  |  |
| Opis | Max. limit static load
Sa [N] | Max. limit static load
Sr [N] | Max. limit static load
S90 [N] |
| CFMW.70 | 2100 | 2800 | 1300 |
| CFMW.110 | 2100 | 2800 | 1300 |
The max static load is the value above which the material may break thus prejudicing the hinge functionality use. Obviously, a suitable factor, according to the importance and the safety level of the specific application must be applied to this value.
