Specification
Type
- Type T: for T-groove cylinder
Connection type
Housing
Plastic
Cable (outer sheath)
Polyurethan PUR
Black
Plug
Plastic, 3-pole
Knurled screw connection
Temperature range: -30 °C to +80 °C
Protection class IP 65, IP 67
Information

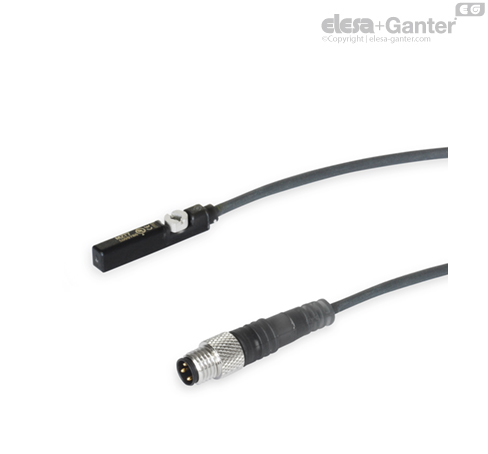

The sensor GN 3380 detects the piston position of pneumatic cylinders with magnetic pistons. Cylinders installed in pneumatic clamps enable the position detection of the clamp itself by means of this sensor. Upon reaching the switch point, the sensor electronics deliver a high signal, for instance to a machine controller, and also indicate this switch state via the integrated LED.
For installation, the sensor is inserted into the cylinder groove from above. The side retaining ribs prevent it from falling out. A quarter turn of the fastening screw quickly and reliably locks the sensor into place in the groove.
