Izvedba
Zatič
Stainless steel AISI 630
izločevalno utrjeno
Knob, push button
Plemenito jeklo 1.4404 (A4)
Balls
Stainless steel AISI 420C
Pritisna vzmet
Iz plemenitega jekla
German material no. 1.4565
Informacije

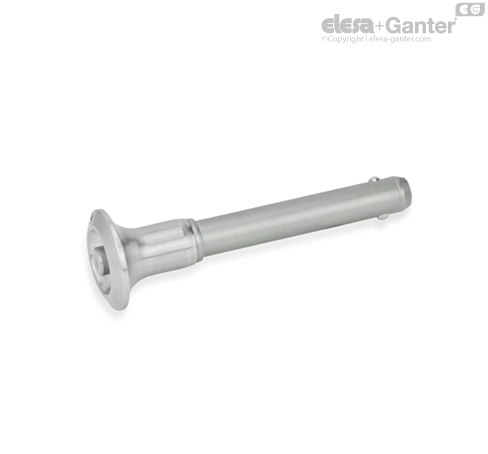

Stainless Steel-Ball lock pins GN 113.10 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is location pins which have to be often removed and replaced again.
By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.
Ball lock pins GN 113.10 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant stainless steel.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
