GN 612.8
78711-R,20
78710-R,10
78712-R,50
ozGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
78711-R,20
78710-R,10
78712-R,50
ozGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Guide
Zinc die casting
Zinc plated, blue passivated
Plunger pin
Jeklo
zinc plated, blue passivated
Lever
Plastic (Polyamide PA)

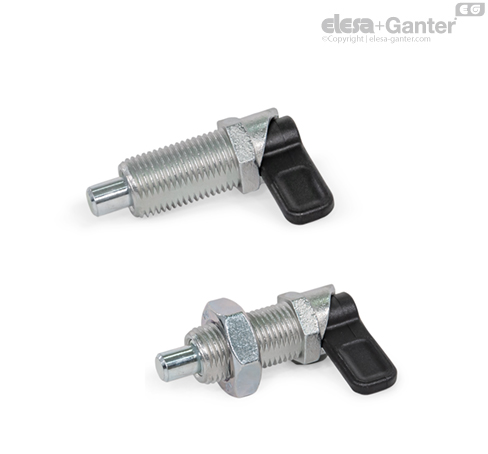

Cam action indexing plungers GN 612.8 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. The groove allows safe positioning.
These cam action indexing plungers made of die-cast zinc are very reasonably priced design versions.
