Main specifications
Material
Polyamide based (PA) technopolymer, black colour, glossy finish.

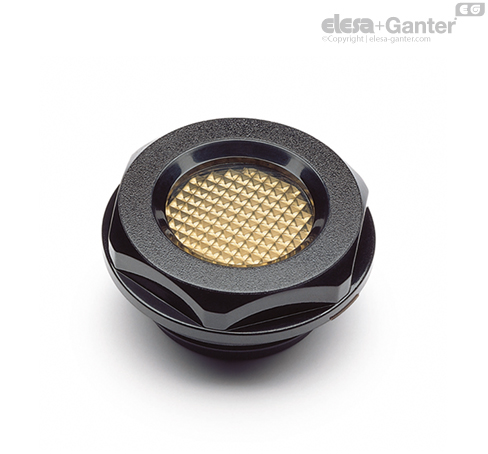

Prismatic window
Transparent sulphonic based technopolymer. The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.
Packing ring
FKM type VITON®*.
Maximum continuous working temperature
140°C at 7 bar pressure.
* Registered trademark by DuPont Dow Elastomers.
General information
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories
Accessories on request
Brass nut type GH.- for fitting to reservoirs with wall thickness smaller than 5 mm.
