Main specifications
Material
Polyamide based (PA) technopolymer, black colour, matte finish.
Window
Transparent polyamide based (PA-T/AR) technopolymer.
Contrast screen
White lacquered aluminium with red level line.
Packing ring
NBR synthetic rubber O-Ring.
Maximum continuous working temperature
100°C.
General information
Features and applications
The push-fit assembly is guaranteed by optimised ribbings.
Sealing is guaranteed by the O-ring.

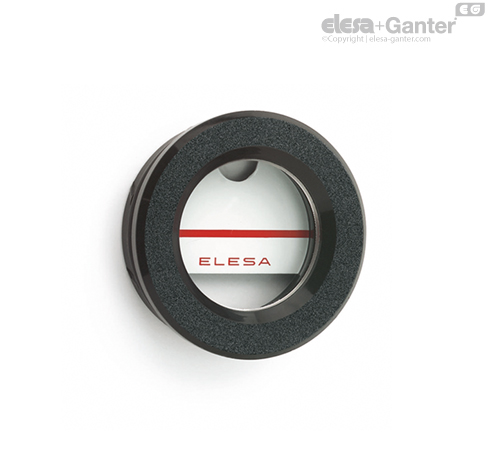

HRT. oil level indicators push-fit are particularly suitable for assembly on reservoirs with limited pressure.
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Assembly instructions
Assembly instructions
Chamfer hole 1x45° and grease slightly the outside surface of the O-ring to make assembly easier.
