Opomba
Funkcije
The modular structure, made using snap assembly of the single segments (Fig.1), allows you to adjust and direct the lubricating jet with maximum flexibility, while maintaining stability in operation even in the presence of vibrations.
The length of the tube can be adapted to the specific application by adding or removing the appropriate number of segments via the snap fitting.
The use of PTFE tape on the threading of the fittings is recommended to facilitate sealing.
Assembled without using seals, the system should therefore not be considered watertight.
The kit’s individual components are also sold separately (see table of components).
Max input pressure: 4 bar.
.

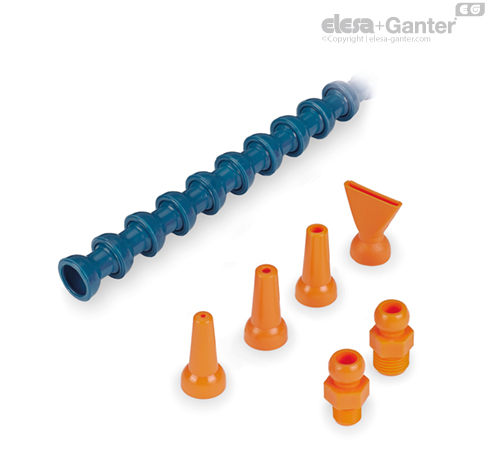

| Kit components | Code | Opis | Qty |
| Modular tube | 471201 | FHT.1/4 | 1 |
| Navojni nastavek | 471058 | FHJ.1/4-1/8-NPT | 1 |
| Navojni nastavek | 471059 | FHJ.1/4-1/4-NPT | 1 |
| Nozzle | 471101 | FHN.1/4-1 | 1 |
| Nozzle | 471106 | FHN.1/4-3 | 1 |
| Nozzle | 471111 | FHN.1/4-5 | 1 |
| Nozzle | 471116 | FHN.1/4-P25 | 1 |
Chemical compatibility
Material resistant to detergents, lubricants and oils, avoid contact with strong acids and bases.
To use fluids other than those listed, contact Elesa+Ganter’s technical department.
V vsakem primeru priporočamo, da preverite ustreznost izdelka za dejanske delovne pogoje
Other executions
Posebne izvedbe na zahtevo
Tubes, fittings and nozzles made from raw materials suitable for contact with food (FDA CFR.21 and EU 10/2011).
Dodatki
Dodatna oprema na zahtevo
Pliers to assemble the components.
