Main specifications
Material
Tehnopolimer na podlagi poliamida (PA).

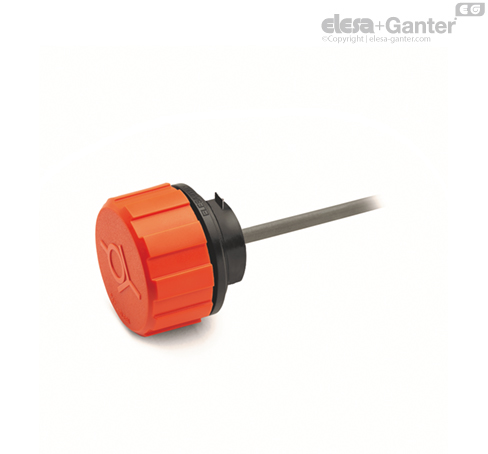

- Cover: RAL 2004 orange, semi-matte finish, with graphic symbol "valve".
- Threaded connector: black colour, semi-matte finish.
- Zinc-plated steel sheet bayonet.
Tesnilni obroč
Sintetična guma NBR.
Nadtlačni ventil
Tehnopolimer s tesnilnim obročem iz sintetične gume NBR in vzmetjo iz plemenitega jekla.
Set at around 0.350 bar.
Sesalni ventil
Tehnopolimer s tesnilnim obročem iz sintetične gume NBR in vzmetjo iz plemenitega jekla.
Nastavljeno na približno 0,030 bar.
Zračni filter v obliki obroča
"Tech-foam" polyurethane foam mesh (polyester base), air filtration 40 µ.
Ploska merilna palica
Phosphatised steel. On request dipstick can be supplied in different lengths and/or complete with MAX-MIN level lines.
Najvišja neprekinjena obratovalna temperatura
100°C.
General information
Funkcije
- it reduces reservoir air volume intake keeping clean oil and filter;
- it improves suction pump action during working conditions reducing cavitation phenomenon;
- preprečuje uhajanje tekočine, kadar je sistem del mobilne enote;
- zmanjšuje penjenje tekočine.
Tehnički podaci
Air flow rate for the different executions of breather caps can be obtained from the diagram on the basis of the difference of air pressure inside and outside the reservoir.
Working in an hydraulic circuit
