Izvedba
Material
Polyamide based technopolymer (PA), black colour.
Standardne izvedbe

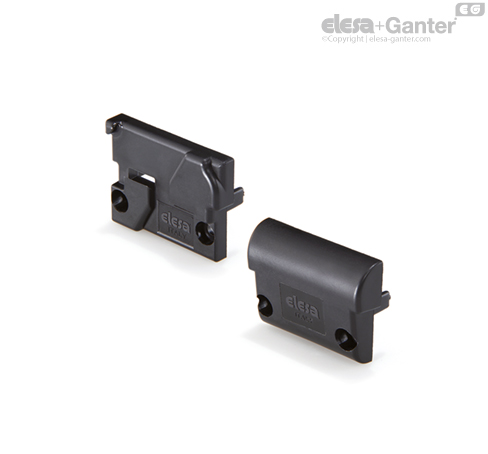

- RLT-HJ: joining header.
- RLT-HE: end header.
Opomba
Funkcije in uporabe

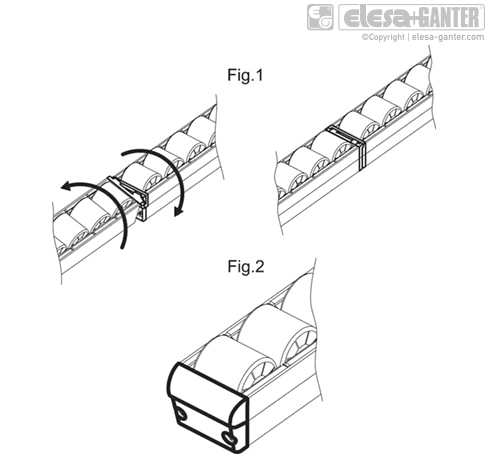

RLT-HJ header serves to bind tightly two ELEROLL rollers by engaging them (Fig. 1).
RLT-HE header is the end-element of ELEROLL roller tracks (Fig. 2).
In addition to being an aesthetic element, the headers represent a safety element for the operator's hands and the handled material.
Navodila za uporabo
Montaža
Assemble the headers to the end of RLT-AL aluminum profile by means of two UNI 6954 Ø 2,9 x13 self-tapping screws (included in the supply).
