Izvedba
Material
Termoplast (poliamid, PA), ojačan s steklenimi vlakni, črno-siva, matiran.
Boss cap
- ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colour, matte finish, press-fit assembly. Supplied, removable by a screwdriver.
Dodatki: Na voljo ločeno (glejte tabelo).
Standardna izvedba
Black-oxide steel boss, H7 reamed hole
Opomba
Funkcije in uporabe

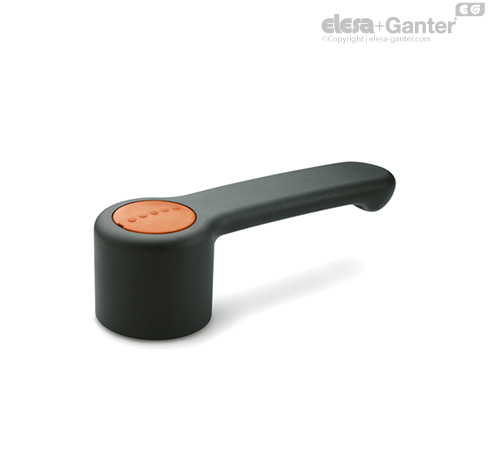

Control levers ELCR. have a straight lever, parallel to the clamping surface. Particularly suitable when the lever turning angle is limited owing to lack of space.
Ergonomy
Rotations are performed smoothly and powerfully thanks to the heavy-duty arm of the lever, while the enlarged end offers an effective grip.
Manoeuvre angle limitation
Omejitev kota premikanja je mogoča z namestitvijo omejilnih zatičev v zadnjo vodilno režo.
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
- GN 184: axial retaining washer in black-oxide steel.

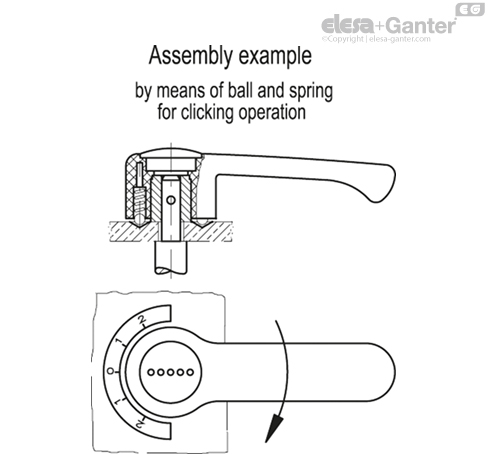

- MS.: ball and spring for clicking operation to be fitted into the two holes d3 drilled at 180° (see ball and spring).
- ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colour, matte finish, press-fit assembly (see table).
Other executions
Posebne verzije na zahtev
Ročice s prečnimi izvrtinami po GN 110.
