Izvedba
Material

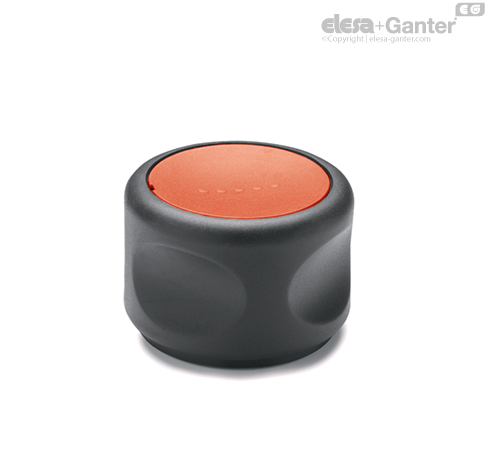

High-resilience technopolymer coated with "soft-touch" thermoplastic elastomer (TPE), grey-black colour, matte finish.
Centre cap
- ECB.G: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied, removable by a screwdriver.
Dodatki: Na voljo ločeno (glejte tabelo).
Standardne izvedbe

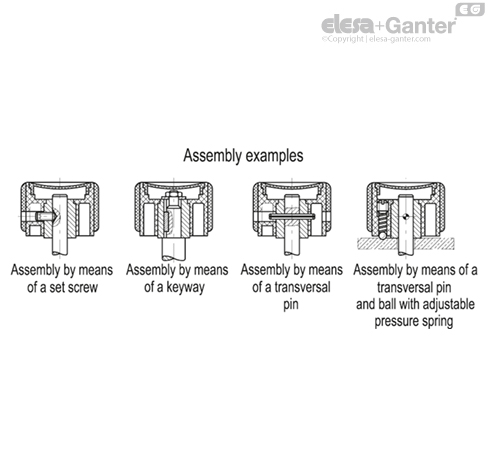

Assembly by means of a keyway or a transversal pin in the semi-machined hole f or a set screw (redrill and tap hole f).
- EGK.SOFT: black-oxide steel boss, H7 reamed hole.
- EGK-SST-SOFT: AISI 304 stainless steel boss, H7 reamed hole.
Opomba
Funkcije in uporabe
The special four-concave-mark shape of the knob and the "soft-touch" elastomer coating allow the best grip during clicking operation even in the presence of oils, grease and sweat from the hand. Particularly suitable for fitness machines, disability aids, tools and machines for gardening and high-precision instruments.
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
- MS.: Ball and spring for clicking operation to be fitted in the assembly hole.
- ECB.G: glass-fibre reinforced polyamide based (PA) technopolymer centre cap, in Elecolors colours, matte finish, press-fit assembly (see table).
