Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 7042 grey colour, matte finish.
General information
Features and applications

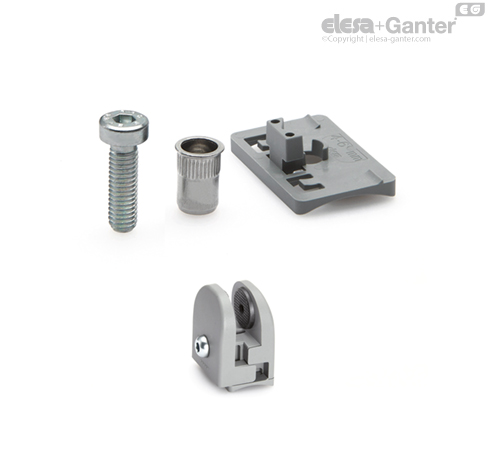

Kit for installation of PC support clamp on round tubes (thickness max. = 2 mm). The kit includes a technopolymer adapter, a M6 zinc-plated steel threaded insert to install with a normal riveter on the tube and a M6 cylindrical head screw.
The adapters give the best aesthetic result for panels of thickness between 4 and 6 mm and tubes with diameters as follows:
- 30÷34 mm
- 40÷43 mm
- 48÷52 mm.
