Izvedba
Material
Termoplast (poliamid, PA), ojačan s steklenimi vlakni, črno-siva, matiran.
Pritisni gumb
Light-blue technopolymer, glossy finish.
Screw-covers
Technopolymer, grey-black colour, matte finish. Supplied assembled, removable by a screwdriver.
Standardne izvedbe
Brass bosses, threaded blind hole.

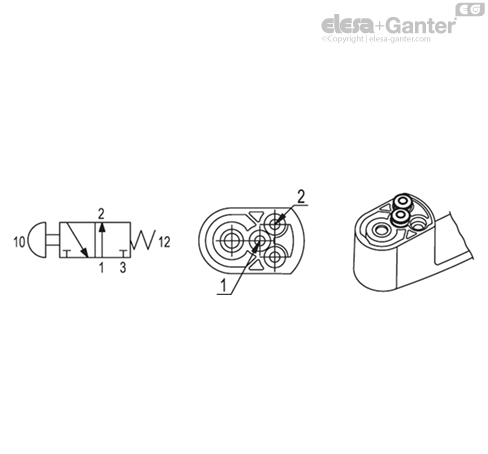

- EBR-PN-3/2-NO: the pneumatic valve is normally open. The actuation of the button stops the air passage.

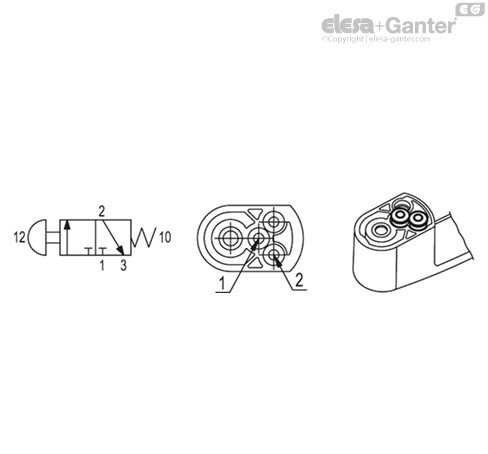

- EBR-PN-3/2-NC: the pneumatic valve is normally closed. The actuation of the button opens the air passage.
- EBR-PN-5/2: the actuation of the button switches the output channel of the air, between the two available.
Opomba
Delovanje

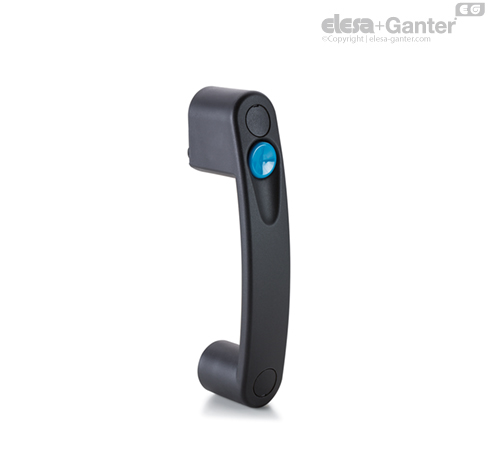

The handle is supplied with quick couplings for direct fitting of a tube Ø 4 mm for pneumatics.
The handle allows the direct drive of a single-acting pneumatic actuator (execution 3.2) or double acting (execution 5.2). The force to be applied to the button for the actuation of the drive is independent from the operating pressure.
The handle is already set up with discharge function of the pressure chamber.
EBR-PN handle can be assembled with EBR neutral handle.
| Technical features |
|---|
| Operating medium | Filtered air |
| Operating pressure | 2 ÷ 10 bar |
| Delovna temperatura | -20° ÷ +80°C: dry air 0° ÷ +80°C: lubricated air |
| Normal rated flow | 130 Nl/min (6 bar, free exhaust) |
| Actuation force | 25 N (independent from the operating pressure) |
| Nominal diameter air passage | Ø 2.5 mm |
Tehnični podatki
Natezna trdnost in udarna trdnost: vrednosti F1, F2, L1 in L2, navedene v preglednici, so bile pridobljene med preskusi lomljenja, ki so bili izvedeni z ustrezno dinamometrično opremo pod preskusnimi pogoji, prikazanimi na sliki, in temperaturi okolice.
