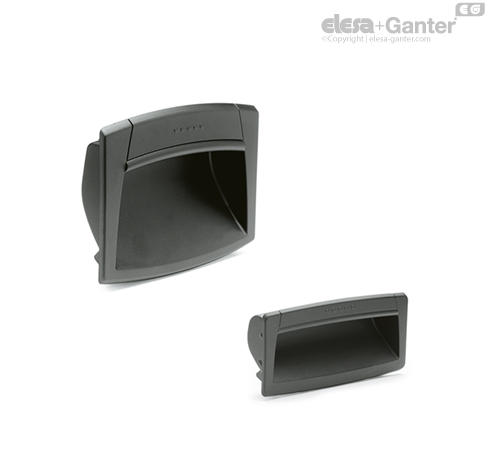

EPR-PF-AE-V0

Prijemalne vdolbine

Ergonomy and design

A modern design thanks to the compact shape. The internal profile of the cavity offers a safe, comfortable and ergonomic grip.

Tehnički podatki

Certifikacija »V0« po UL-94 V (Underwriters Laboratories) Ta certifikat določa, da se mora vžgani termoplast sam pogasiti v 10 sekundah, ne da bi pri tem nastale goreče kapljice.

The lifting (F1) and pull out (F2) resistance values reported in the table are the result of the tests carried out in laboratory with handles assembled on strengthened metal sheet panels with thickness = 1.5 mm (strengthened for test purposes).



Navodila za sestavljanje

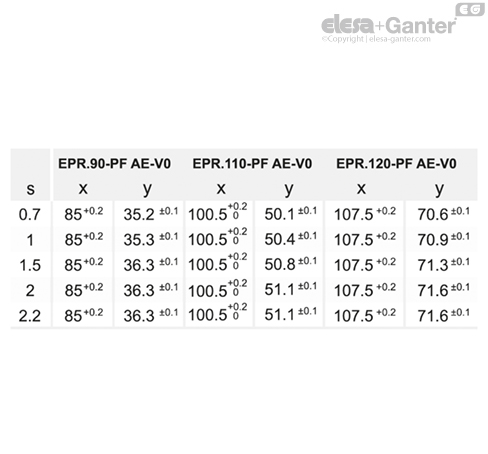

1. Drill the handle housing according to the template dimensions reported in the table.
2. Remove all drilling burrs before fitting the handle.
3. Fit the upper part of the handle into the housing (Fig. 1).
4. Press onto the lower part until the handle is completely snapped in (Fig. 2).
