Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Cover
- ECA.M: polyamide-based (PA) technopolymer in Elecolors colours, matte finish.
Supplied, press-fit assembly, removable by a screwdriver.
Also available with accessory sold separately (see table ECA.M).
Standardna izvedba
Pass-through holes for front or rear mounting via cylindrical-head screws with hexagon socket, hexagonal-head screws or nuts, which can be bought.
General information
Tehnički podaci
Natezna trdnost in udarna trdnost: vrednosti F1, F2, L1 in L2, navedene v preglednici, so bile pridobljene med preskusi lomljenja, ki so bili izvedeni z ustrezno dinamometrično opremo pod preskusnimi pogoji, prikazanimi na sliki, in temperaturi okolice.
Instructions of use

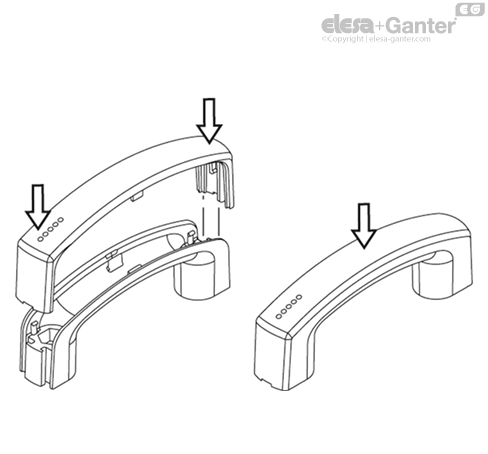

Assembly instructions
After having fixed the handle, insert the guides into the special grooves in the handle by forcing elastically all the way until fitting is complete.
Exert a final pressure on the central part in order to fully release the fixing of the cover.
