Izvedba
Pass-through handle shanks
Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish.
To prevent tube rotation, screw up to the stop the self-tapping screw ø3,9x6,5 arranged inside the handle shank.
Closing caps
- ECS.T: polyamide based (PA) technopolymer, RAL 9005 black colour (C9), matte finish, press-fit assembly. Supplied, removable by a screwdriver.
Dodatki: Na voljo ločeno (glejte tabelo).
Cev
Plemenito jeklo AISI 304.
Montaža
Pass-through hole for front or rear mounting by means of cylindrical-head screws with hexagon socket, hexagonal-head screws or standard nuts.
Opomba
Tehnički podaci

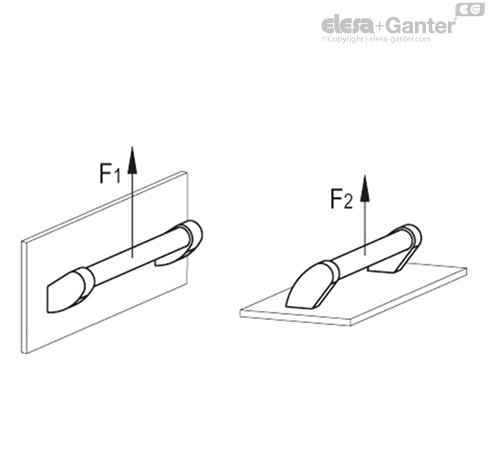

Tensile stress: F values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
- ECS.T: Polyamide based (PA) technopolymer closing caps, RAL 9005 black colour (C9), matte finish, press-fit assembly (see table). For sufficient quantities, it can be supplied in other colours.
