MRH

Zložljivi ročaji z vdolbino

Features and applications

The MRH handle is completely recessed.

By pressing the retractable button, the handle will come out of its casing thanks to a snap mechanism, allowing the opening of closing panels, drawers, etc.

Technical data

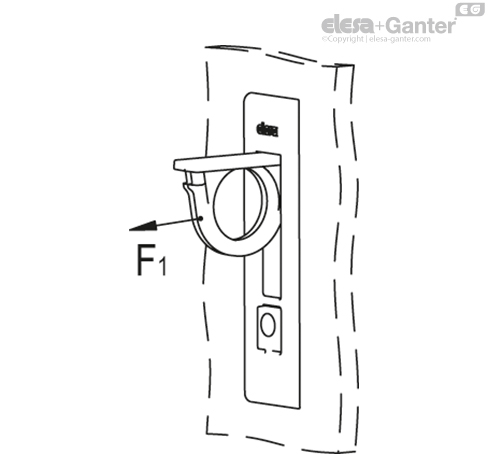

Tensile stress: the values F₁ indicated in the table were obtained during breaking tests carried out under the test conditions shown in the figure with ambient temperature.

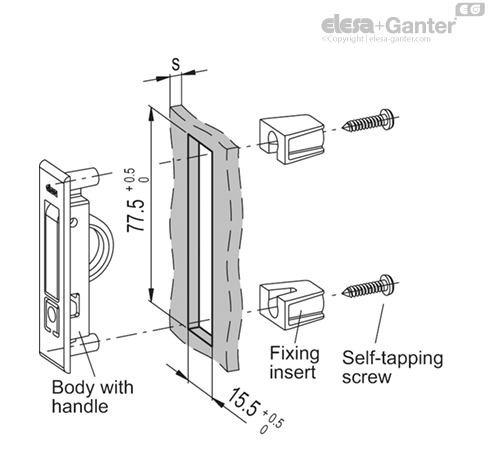

Assembly instructions

• Drill the handle housing according to the template dimensions.

• Remove all drilling burrs before fitting the handle.

• Insert the handle body all the way into the hole.

• Insert the fixing insert using the self-tapping screws (included in the supply) until they can go no further. The suggested tightening torque is 1 Nm.
