CFU-CLEAN

Tečaji z nastavljivim trenjem

Funkcije in uporabe

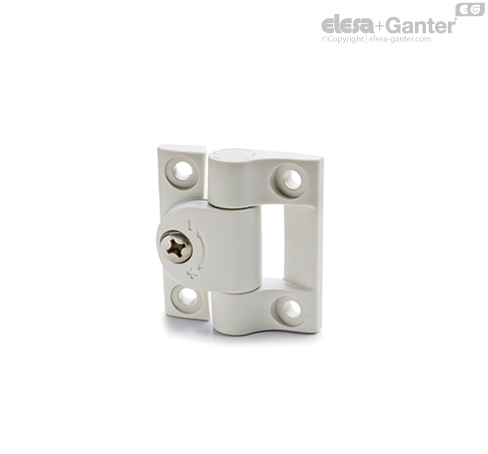

The main feature of CFU-CLEAN hinge is the possibility to adjust the resistant torque of the door on which it is assembled, facilitating the door clamping in the various positions of opening, partial opening and closing.

To adjust the friction force, simply turn the screw on the hinge body, clockwise to increase the friction and anti-clockwise to reduce it.

Kot vrtenja (približna vrednost)

Max 275º (-95° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Omejitve kota vrtenja ne smete preseči, da ne vplivate na delovanje tečaja.

Resistant torque

Vrednosti zateznega momenta od 1,4 do 4 Nm je mogoče doseči z največjim zateznim momentom 0,8 Nm (CFU.40) in 4 Nm (CFU.60) nastavitvenega vijaka.

The hinge had been tested with more than 60.000 opening and closing cycles and the values of the resistant torque was unchanged.

Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.





Testi upornosti	Aksialna obremenitev		Radialna obremenitev		Obremenitev pod kotom 90°		Resistant torque
Opis	Maximum working load* Ea [N]	Obremenitev pri lomu Ra [N]	Največja delovna obremenitev Er [N]	Obremenitev pri lomu Rr [N]	Največja delovna obremenitev E90 [N]	Obremenitev ob lomu R90 [N]	[Nm]
CFU.40 CH-4-CLEAN	300	900	300	1500	230	1000	1.4
CFU.60 CH-6-CLEAN	600	2350	400	3200	350	2500	4

* Elastična deformacija 1 mm.
