Izvedba
Material
Tehnopolimer na podlagi acetalne smole (POM), črna barva, matirana obdelava.
Zatič
Termoplast (polikarbonat, PC), črna, mat.
Adjusting boss and screw
AISI 304 stainless steel screw.
AISI 303 stainless steel adjusting boss.
Standardna izvedba
Assembly by means of pass-through holes for cylindrical head screws.
Opomba
Funkcije in uporabe

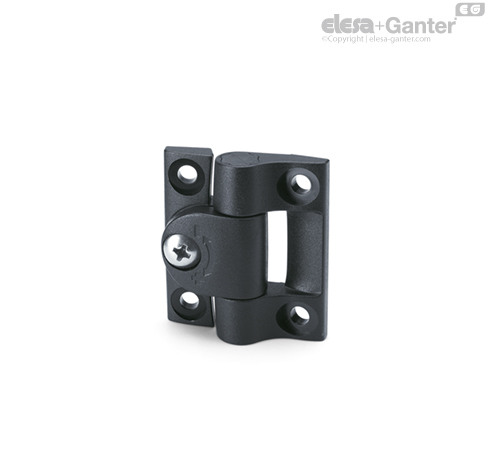

The main feature of CFU. hinge is the possibility to adjust the resistant torque of the door on which it is assembled, facilitating the door clamping in the various positions of opening, partial opening and closing.

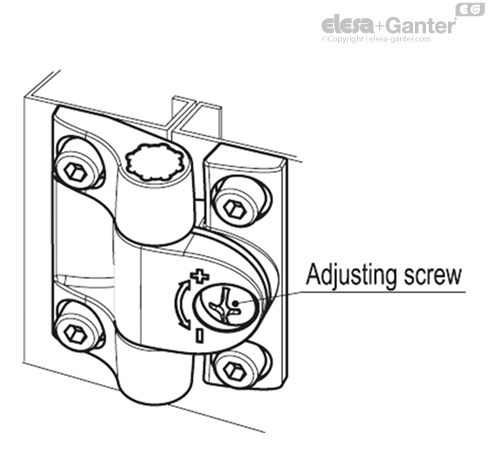

To adjust the friction force, simply turn the screw on the hinge body, clockwise to increase the friction and anti-clockwise to reduce it.
Kot vrtenja (približna vrednost)
Max 275º (-95° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Omejitve kota vrtenja ne smete preseči, da ne vplivate na delovanje tečaja.
Resistant torque
Vrednosti zateznega momenta od 1,4 do 4 Nm je mogoče doseči z največjim zateznim momentom 0,8 Nm (CFU.40) in 4 Nm (CFU.60) nastavitvenega vijaka.
The hinge had been tested with more than 60.000 opening and closing cycles and the values of the resistant torque was unchanged.
Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.
| Testi upornosti | AKSIALNA OBREMENITEV | RADIALNA OBREMENITEV | OBREMENITEV POD KOTOM 90° | Resistant torque |
 |  |  |  |
| Opis | Maximum working load*
Ea [N] | Obremenitev pri lomu
Ra [N] | Največja delovna obremenitev
Er [N] | Obremenitev pri lomu
Rr [N] | Največja delovna obremenitev
E90 [N] | Obremenitev ob lomu
R90 [N] | [Nm] |
| CFU.40 CH-4 | 300 | 900 | 300 | 1500 | 230 | 1000 | 1.4 |
| CFU.60 CH-6 | 600 | 2350 | 400 | 3200 | 350 | 2500 | 4 |
* Elastična deformacija 1 mm.
