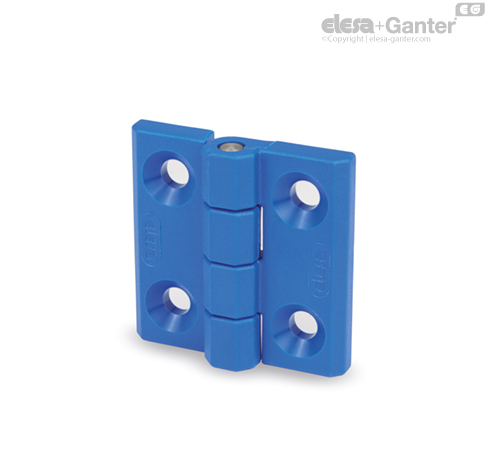

Main specifications
Material
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), modra barva RAL 5005, matirana obdelava.
Izdelano iz surovin, skladnimi z zahtevami FDA (FDA CFR.21 in EU 10/2011).
Rotating pin
AISI 303 stainless steel.
Standardna izvedba
Pass-through holes for countersunk head screws.
General information
Funkcije in uporabe
The RAL 5005 blue colour is easily visible in case of accidental food contamination.
Particularly suitable for applications in the food and pharmaceutical industries.
Kot vrtenja (approximate value)
Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.
To choose the convenient type and the right number of hinges for your application, see the Guidelines.
| Resistance tests | AXIAL STRESS | RADIAL STRESS | 90° ANGLED STRESS |
 |  |  |
| Description | Maximum working load
Ea [N] | Load at breakage
Ra [N] | Maximum working load
Er [N] | Load at breakage
Rr [N] | Maximum working load
E90 [N] | Load at breakage
R90 [N] |
| CFM.40 SH-5-VD | 100 | 1600 | 200 | 1900 | 200 | 1200 |
| CFM.50 SH-6-VD | 100 | 2100 | 200 | 3100 | 200 | 2000 |
