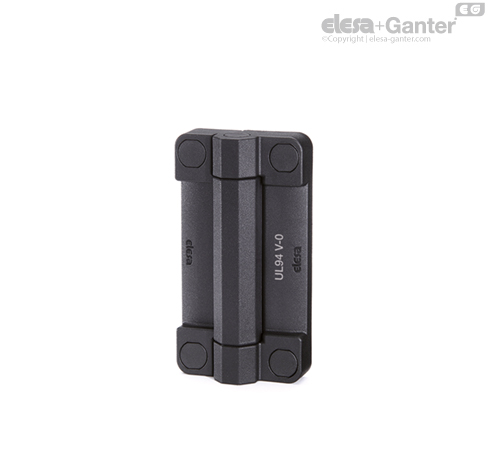

Izvedba
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, certified self-extinguishing UL-94 V0, black or grey colour RAL 7040 (C33), matte finish.
Vrtljivi zatič
Glass-fibre reinforced polyamide based (PA) technopolymer, certified self-extinguishing UL-94 V0, black or grey colour RAL 7040 (C33), matte finish.
Assembly kit (see assembly):
- 425948 CFMW - KIT RICAMBIO NERO ACCESSORI
- 425949 CFMW - KIT RICAMBIO GRIGIO ACCESSORI
Vsak komplet vsebuje 4 končne pokrovčke (slika 1) in 4 puše (sliki 2 in 3) iz termoplasta.
Montaža
CFMW-AE-V0 hinge can be assembled in three different modes:
- With M6 UNI 5933 ISO 10642 countersunk-head screw (not supplied) and screw cover supplied in the kit (fig. 1) to avoid free access to screws.
- With cylindrical-head screw with hexagon socket M6 UNI 5931 ISO 4762 (not supplied) to set with the bushing supplied in the kit (fig.2).
- With M6 UNI 5588 ISO 4032 nut (not supplied) and the bushing supplied in the kit (fig.3). This kind of assembly makes the hinge totally tamper-proof preventing any tampering.
Opomba
Funkcije in uporabe
The CFMW-AE-V0 hinge can be used in all areas for which specific regulations require the use of materials capable of preventing the risk of fire.
The different assembly options make this product easy to install on the most common aluminium profiles (30 mm minimum side).
CFMW-AE-V0 hinge can be assembled with CFSW. hinge with built-in safety switch CFSW.
Kot vrtenja (približna vrednost)
Max 180° (0° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Omejitve kota vrtenja ne smete preseči, da ne vplivate na delovanje tečaja.
The condition where the two interconnected surfaces are on the same plane is to be strictly verified because the hinge must not be stressed by any negative angle (fig.4).
Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.
| Testi upornosti | Aksialna obremenitev | Radialna obremenitev | Obremenitev pod kotom 90° |
 |  |  |
| Opis | Največja omejitev statične obremenitve
Sa [N] | Največja omejitev statične obremenitve
Sr [N] | Največja omejitev statične obremenitve
S90 [N] |
| CFMW.70-AE-V0 | 2100 | 2800 | 1300 |
| CFMW.110-AE-V0 | 2100 | 2800 | 1300 |
The max static load is the value beyond which the material may break thus prejudicing the hinge performance. Obviuosly, a suitable coefficient must be applied to this value, according to the importance and the safety level of the specific application.
