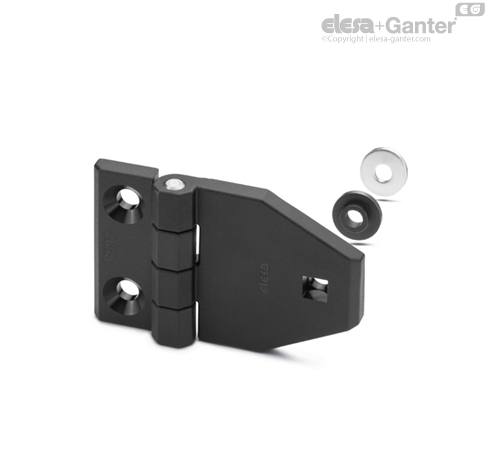

CFM-TR-G

Hinges for mounting on glass or panels

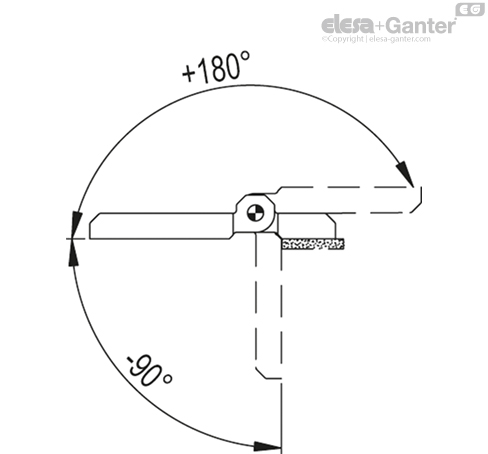

Kot vrtenja (približna vrednost)

Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Omejitve kota vrtenja ne smete preseči, da ne vplivate na delovanje tečaja.

Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.



Testi upornosti	AKSIALNA OBREMENITEV		RADIALNA OBREMENITEV		OBREMENITEV POD KOTOM 90°
Opis	Največja delovna obremenitev Ea [N]	Obremenitev pri lomu Ra [N]	Največja delovna obremenitev Er [N]	Obremenitev pri lomu Rr [N]	Največja delovna obremenitev E90 [N]	Obremenitev ob lomu R90 [N]
CFM-TR-G-B.40-SH-5	300	750	420	2500	420	1000
CFM-TR-G-B.50-SH-6	270	1040	480	3500	480	1000
CFM-TR-G-B.60-SH-6	250	1200	370	5000	370	2500

The maximum operating load values of the different hinges shown in the tables are merely indicative. They are the result of tests carried out in our laboratories at controlled temperature and humidity (23°C - 50% RH), under specific conditions of use and for a limited period of time. In any case, it is advisable to verify correct operation during installation of the structure.

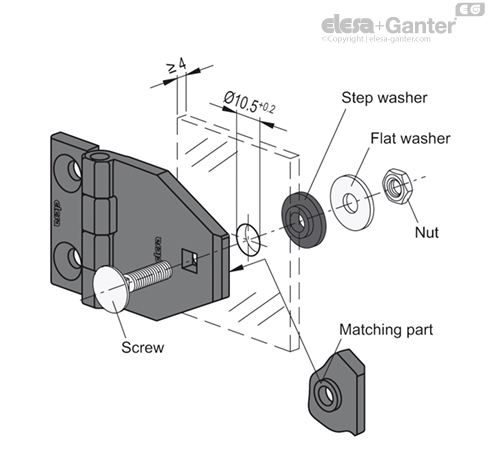

Assembly instructions on glass or panels

• Drill a hole Ø 10.5 ^+0.2 in the glass or in the panel (min. thickness 4 mm).

• Place the hinge frontally centring the matching part (d3) in the hole and insert the screw.

• On the opposite side, insert the step washer, flat washer and tighten with a nut (Fig.1).

At least two hinges need to be mounted for correct operation.
