Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.
Plemenito jeklo AISI 304.
Pass-through holes for M5 countersunk head screws.

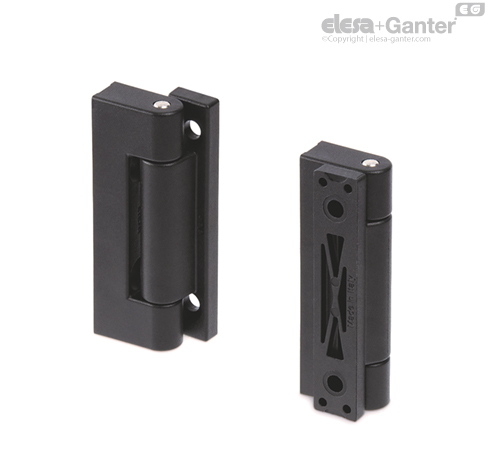

The CFBS hinge is made up of two elements of different sizes and a rotation pin to be inserted upon assembly.

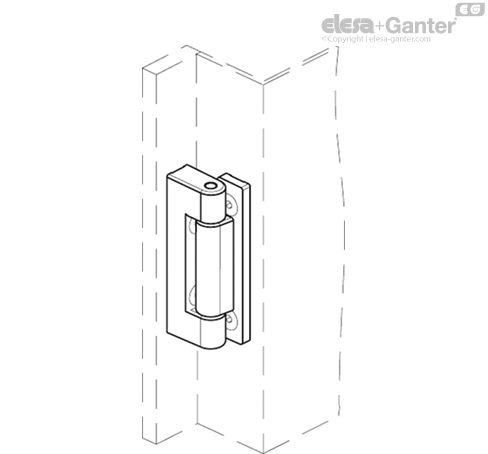

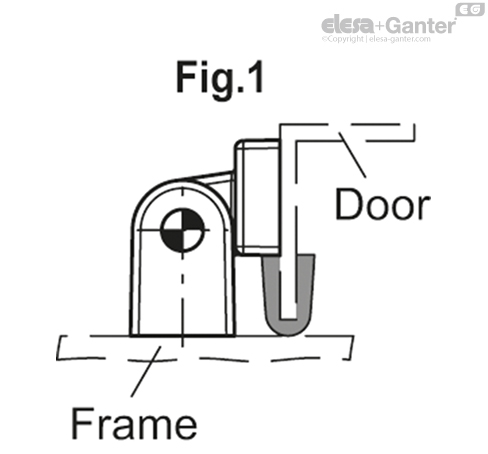

They can be installed on folded sheet metal doors, with the possibility of also applying a seal between the door and the frame (see fig. 1).
Use a suitable tool to insert the rotation pin from the non-knurled side until it locks into the hinge body.

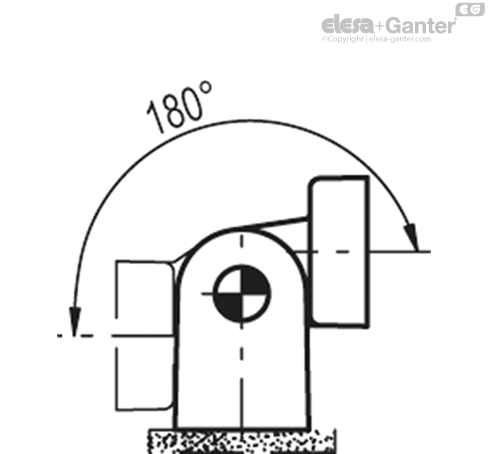

Max 180° (0° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Omejitve kota vrtenja ne smete preseči, da ne vplivate na delovanje tečaja.
Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice-.
| Testi upornosti | AKSIALNA OBREMENITEV | RADIALNA OBREMENITEV | OBREMENITEV POD KOTOM 90° | |||
| Opis | Največja delovna obremenitev Ea [N] | Obremenitev pri lomu Ra [N] | Največja delovna obremenitev Er [N] | Obremenitev pri lomu Rr [N] | Največja delovna obremenitev E90 [N] | Obremenitev ob lomu R90 [N] |
| CFBS.75-13 SH-5 | 500 | 3400 | 2000 | 3200 | 1500 | 2800 |
| CFBS.75-18 SH-5 | 600 | 4500 | 2000 | 3200 | 1000 | 3500 |
| CFBS.75-23 SH-5 | 800 | 4500 | 2000 | 3200 | 900 | 3500 |
