Izvedba
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black or grey colour RAL 7040 (C33), matte finish.
Vrtljivi zatič
Pocinkano jeklo.
Standardna izvedba
Pass-through holes for M6 countersunk head screws.
Technopolymer centering inserts (supplied)
For profiles with slot dimensions from 6 to 12 mm.
Adjustable handle for clamping
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
Red writing "PUSH" tampoprinted on the lever body (avoid contact with solvents, alcohol or detergents containing alcohol).
Black-oxide steel retaining screw, AISI 302 stainless steel return spring.
Boss with threaded blind hole in black-oxide steel.
Washer
Zinc-plated, positioned between the adjustable handle and the hinge body.
Opomba
Kot vrtenja (približna vrednost)

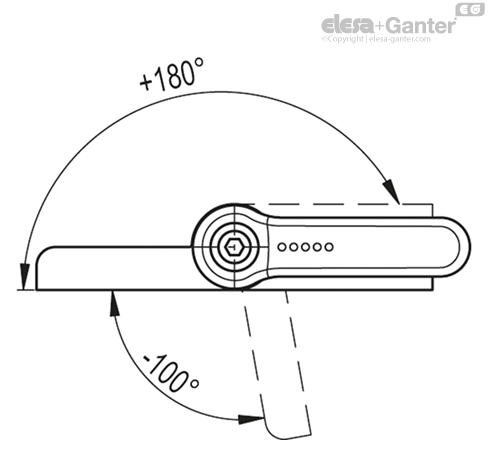

Max 280° (-100° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical peformance.
Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.
Funkcije in uporabe
The CFG-ERS hinge with friction locking enables the locking of a door in any desired position within a field of rotation of 280° with a force proportional to the torque applied to the ERS lever.

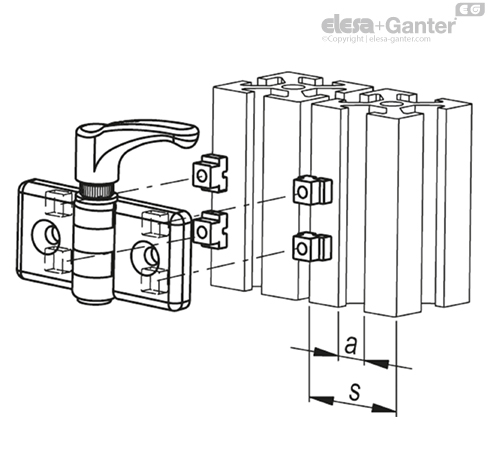

This type of hinge can be used with profiles from 30 up to 60 mm, also combining different dimensions.
| Profile dimension | Insert orientation | Insert colour |
| s | a |
| 30 | 6 |  | Svetlo siva |
| 8 |  |
| 40÷45 | 8 |  | Dark grey |
| 10 |  |
| 50÷60 | 10 |  | Črna |
| 12 |  |

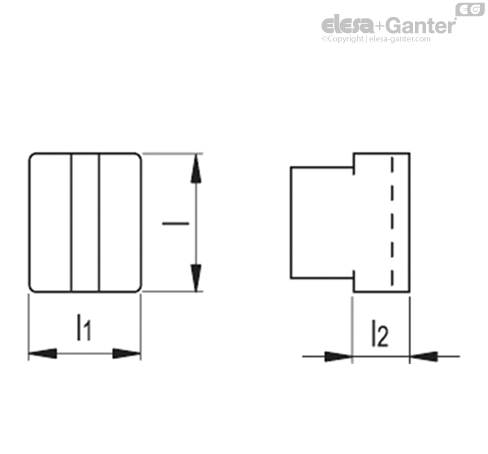

| Centering inserts |
| Dimenzije | Barva |
| l | l1 | l2 | |
| 8 | 6 | 2 | Svetlo siva |
| 10 | 8 | 4 | Dark grey |
| 12 | 10 | 5 | Črna |
Navodila za uporabo
Navodila za uporabo
The friction effect is obtained by clamping the two hinged bodies using the special adjustable handle. To operate the adjusting mechanism, push down the lever (PUSH). By releasing the lever, the spring releases the toothing, thus the handle can return to its starting position and the lever can rotate freely together with the door without obstructing the movement, even in case of accidental shock. The high number of teeth within the adjustable handle guarantees rotation even in case of very limited movement of the lever arm.
| Testi upornosti | AKSIALNA OBREMENITEV | RADIALNA OBREMENITEV | OBREMENITEV POD KOTOM 90° |
 |  |  |
| Opis | Največja delovna obremenitev
Ea [N] | Obremenitev pri lomu
Ra [N] | Največja delovna obremenitev
Er [N] | Obremenitev pri lomu
Rr [N] | Največja delovna obremenitev
E90 [N] | Obremenitev ob lomu
R90 [N] |
| CFG.30/30 SH-6 | 440 | 2570 | 1850 | 3710 | 300 | 1700 |
| CFG.30/40 SH-6 | 320 | 2280 | 1750 | 3490 | 590 | 870 |
| CFG.30/45 SH-6 | 240 | 2150 | 1760 | 3520 | 190 | 780 |
| CFG.30/60 SH-6 | 280 | 1510 | 1600 | 3190 | 180 | 850 |
| CFG.40/40 SH-6 | 320 | 2280 | 1750 | 3490 | 220 | 870 |
| CFG.40/45 SH-6 | 240 | 2150 | 1750 | 3490 | 390 | 780 |
| CFG.40/60 SH-6 | 280 | 1510 | 1600 | 3190 | 180 | 850 |
| CFG.45/45 SH-6 | 240 | 2150 | 1760 | 3520 | 190 | 780 |
| CFG.45/60 SH-6 | 240 | 1510 | 1600 | 3190 | 180 | 780 |
| CFG.60/60 SH-6 | 280 | 1510 | 1600 | 3190 | 180 | 850 |
