Main specifications
Standard execution
Threaded stud and base plate in AISI 304 stainless steel.
Vibration-damper body
Silicone rubber (MVQ) RAL 7040 (C33) grey or RAL 5002 (C52) blue colour, in compliance with FDA (U.S. Food and Drug Administration), giving the possibility to use in the food and medical industry.
- High resistance to ageing.
- Resistance to high temperatures (up to 200°C) and low temperatures (-50°C).
General information
Funkcije in uporabe

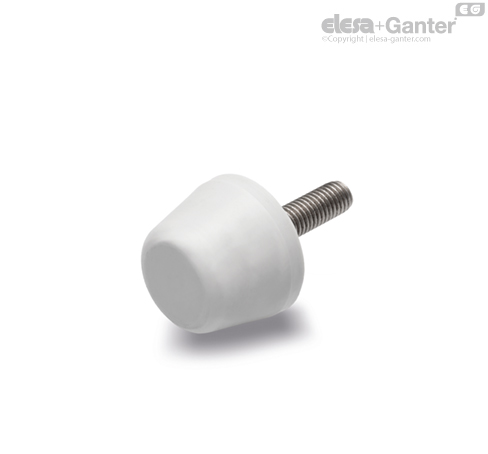

The rubber buffers have been designed to damp vibrations, shocks and noises produced by moving bodies or non-balanced vibrating masses of equipment and machines.
DVF.6 elements are generally used as a bumper or as a limit stop for the absorption of vibrations, and for preventing:
- nepravilno delovanje in skrajšanje življenjske dobe stroja in/ali strojev v bližini;
- noise and thus also damage to health.
Load diagrams for each single code are available on request.
See Tehnični podatki in smernice za izbiro.
Other executions
Posebne verzije na zahtev
Silicone rubber (MVQ) in compliance with FDA, hardness 40, 70 Shore A ±5.
