Main specifications
Material
Rotor, stator and knob in nickel-plated zinc alloy.
Nut
M19x1 in brass.
Toothed washer
Zinc-plated steel.
Packing ring
NBR rubber.
Closing lever
Zinc-plated steel, thickness 2.5 mm.
Screw
M5x10 zinc-plated steel.
Flat and elastic washers
Zinc-plated steel.
Internal spring
Stainless steel.
Vrtenje
90°.
General information
Features and applications

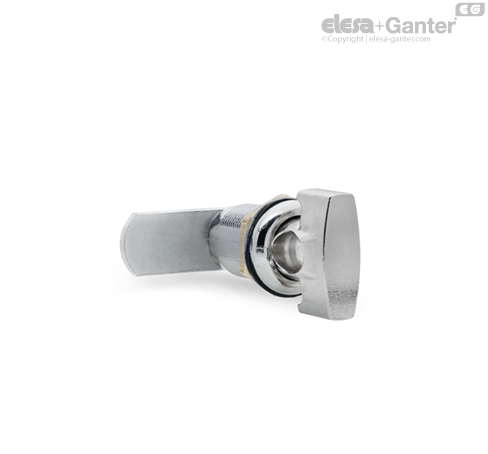

CMLX compression latches are particularly suitable for applications on cabinets or doors subject to strong vibrations.
Provided with a transversal hole for the insertion of a padlock with hook of a diameter from 5 to 7 mm.
The lever rotation is only possible through the knob compression.
