Main specifications
Handle and base
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Handle shank
Zinc alloy with superficial chromate treatment and NBR synthetic rubber O-ring.
Packing rings
Silicon directly applied under the handle base and NBR synthetic rubber O-ring (only for execution IP 65).
Screws
Zinc-plated steel.
Standard executions
- CLT.: lock with different combinations. Each lock has two nickel-plated brass keys, with different combination, removable at 180°.
- CLTU.: lock with one combination. All locks have a couple of keys in nickel-plated brass and the same combination which can be opened with the same key, removable at 180°.
- CLTA.: lock with two-wing groove and technopolymer key with zamac insert, supplied.
Indexes to add to the above mentioned executions:
- IP: executions with protection plug and packing ring with IP 65 protection class, according to table EN 60529, with two zinc-plated setting screws, supplied.
- EU: executions with European style stator.
- EU-IP: executions with European style stator and protection plug and packing ring with IP 65 protection class, according to table EN 60529 , with two zinc-plated setting screws, supplied.
Accessories
Accessories on request

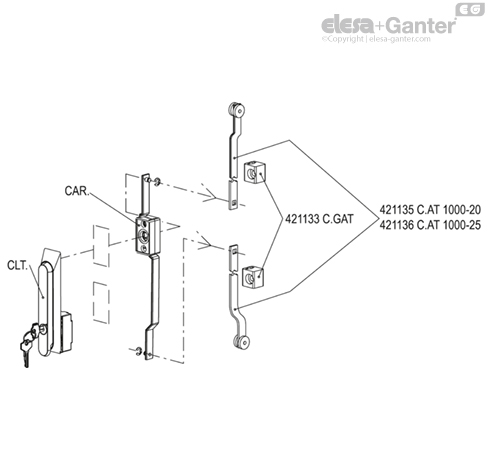

CLT. latches with handle for rod controls are generally used with rod control CAR.- to be ordered separately (see Assembly drawing attached).
Other accessories available on request:
- black technopolymer rod guides: one rod guide every 500 mm of rod control (code 421133 C.GAT);
- 2 flat galvanised steel rod guides, section 14x3 mm, length 1.000 mm and black technopolymer edge rolls for frame 20 mm thick (code 421135 C.AT 1000-20).
- 2 flat galvanised steel rod guides, section 14x3 mm, length 1.000 mm and black technopolymer edge rolls for frame 25 mm thick (code 421136 C.AT 1000-25).
- Latch-type handles with lock with different groove for key.
