PR-CH

Poravnani vlečni ročaji z vzvodnim zapahom

Tehnički podaci

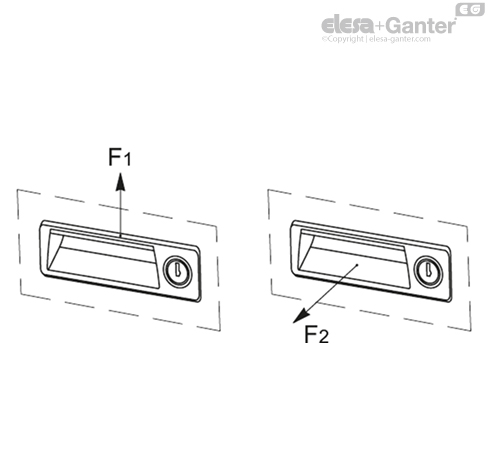

The lifting (F1) and pull out (F2) resistance values reported in the table are the result of tests carried out in the laboratory with handles assembled on metal sheet panels with thickness = 1.5 mm.



Navodila za sestavljanje

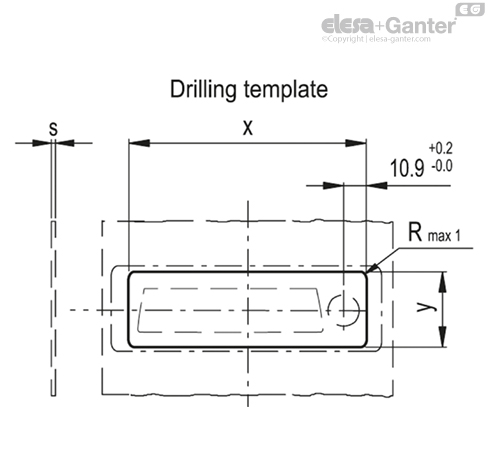

1. Drill the handle housing according to the template dimensions reported in the table.
2. Remove all drilling burrs before fitting the handle.
3. Fit the upper part of the handle into the housing (Fig. 1).
4. Press onto the lower part until the handle is completely snapped in (Fig. 2).





Dodatna oprema na zahtevo (naročite ločeno)
