Main specifications
Material

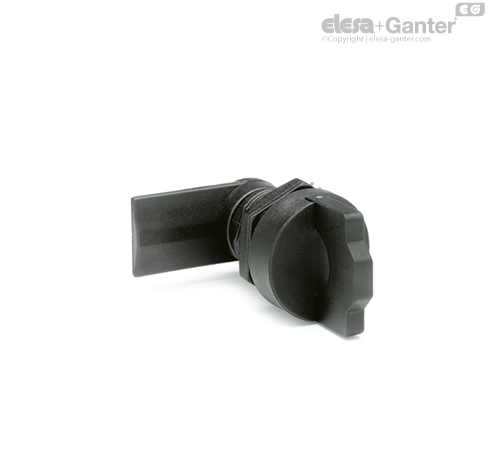

Rotor, stator, fold-away knob, closing lever and nut (M22x1.5) in glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguish UL-94 V0, black colour, matte finish.
Packing ring
SBR rubber.
Internal toothed washer
AISI 304 stainless steel.
Self-tapping screw
AISI 304 stainless steel.
Rotation
90°.
IP protection
IP 65 protection class, according to table EN 60529-.
General information
Technical data
The "V0" certification in accordance with UL-94 V (Underwriters Laboratories) (see Technical Data-) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating incandescent drops.
Other executions
Special executions on request
Closing lever with l2 ledge in other dimensions.
