Izvedba
Material

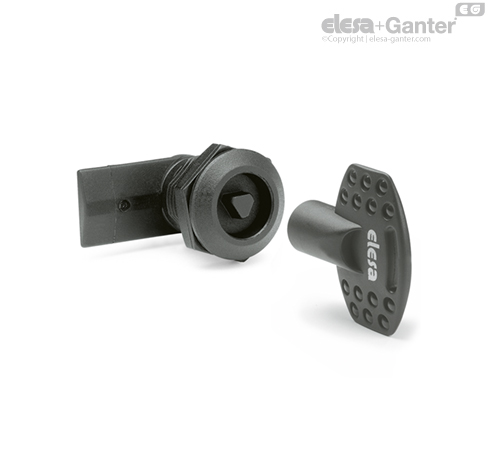

Stator, rotor, closing lever and nut (M22x1.5) in glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguish UL-94 V0, black colour, matte finish.
Tesnilni obroč
SBR rubber.
Internal toothed washer
Plemenito jeklo AISI 304.
Self-tapping screw
Plemenito jeklo AISI 304.
Ključ
Tehnopolimer na podlagi poliamida (PA).
Vrtenje
90°.
Zaščitni razred IP
IP 65 protection class according to table EN 60529.
Standardne izvedbe
- CQT/A: mark for two-wings key.
- CQT/T: mark for triangular key.
Opomba
Tehnični podatki
The "V0" certification in accordance with UL-94 V (Underwriters Laboratories) (see Tehnični podatki) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating incandescent drops.
