Izvedba
Material
Glass-fibre reinforced polyamide-based (PA) technopolymer, black colour, certified self-extinguishing UL-94 V0.
Tesnilni obroč
Silicone directly applied onto the back side of the stator head.
Washer with elastic fixing wings and self-tapping screws
Plemenito jeklo.
Ključ
Tehnopolimer na podlagi poliamida (PA).
Vrtenje
90°.
Zaščitni razred IP
IP 65 protection class, according to table EN 60529.
Standardne izvedbe
- CQT/A: mark for two-wings key.
- CQT/T: mark for triangular key.
Najvišja neprekinjena obratovalna temperatura
130°C.
Disassembly tool (naročite ločeno)
Code 421550 ATTREZZO CQT.FM. in AISI 304 stainless steel.
Opomba
Funkcije
Quick assembly with steel plate thickness ranging from 1 to 2 mm latches.
Tehnički podaci
The "V0" certification in accordance with UL-94 V (Underwriters Laboratories) (see Tehnični podatki) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating incandescent drops.
Posebne verzije na zahtev
Posebne verzije na zahtev
- Closing levers in zinc-plated steel.
- Latches and keys supplied separately.
Navodila za sestavljanje
Navodila za sestavljanje

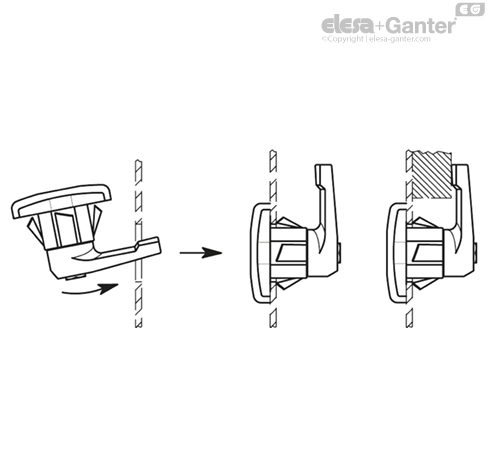

The latch is inserted in the mounting hole of the door on the lever side (see picture) until the wings of the elastic washer snap in, ensuring complete fastening.
The latches are supplied with assembled lever for faster mounting.
Where needed, the latch can be disassembled from the inside of the door by means of a disassembling tool (to be ordered separately).
