CQ.

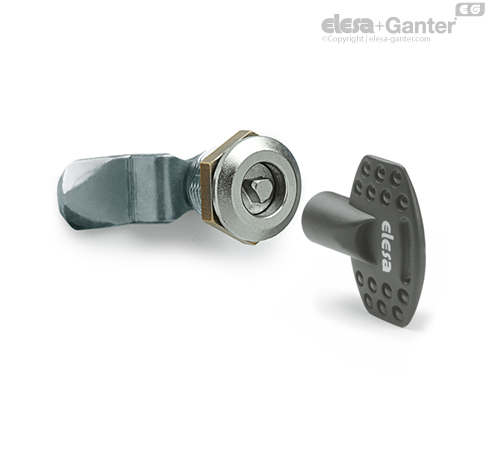

Zapahi z ročico in ključavnico

Stator and rotor

Nickel-plated zinc alloy.

Matica

For threaded stator M19X1 = brass.

For threaded stator M22x 1.5 = zinc-plated zinc alloy.

Shaped closing lever

Pocinkano jeklo.

For threaded stator M19X1, thickness = 2.5 mm.

For threaded stator M22x 1.5, thickness = 3 mm.

Spring washer

Pocinkano jeklo.

Tesnilni obroč

For threaded stator M19X1 = PVC.

For threaded stator M22x 1.5 = SBR rubber.

Vijak

M5x8 zinc-plated steel.

Ključ

Tehnopolimer na podlagi poliamida (PA).

Vrtenje

90°.

Zaščitni razred IP

IP 65 protection class, according to table EN 60529

Standard executions:

• CQ/A: two-wing groove for key.
• CQ/T: triangular groove for key.
