Izvedba
Handle and stator
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, RAL 3020 red colour mobile part.
Rotor
Cinkova tlačna litina s kromirano površinsko obdelavo
Springs
Plemenito jeklo.
Front plate
Plemenito jeklo.
Matica
M22x1.5 in technopolymer.
Flat closing lever
Zinc-plated steel, thickness 3 mm.
Tesnilni obroč
NBR rubber.
Self-tapping screw
Pocinkano jeklo.
Two keys
Nickel-plated brass, removable in two positions at 180°.
Vrtenje
90° clockwise (right).
Zaščitni razred IP
IP 65 protection class, according to table EN 60529.
Standardne izvedbe
- CSMT-A: lock with 400 different combinations. Each lock has a couple of keys with different combination.
- CSMTU-A: lock with one combination. All locks have the same combination which can be opened with the same key.
Opomba
Funkcije in uporabe

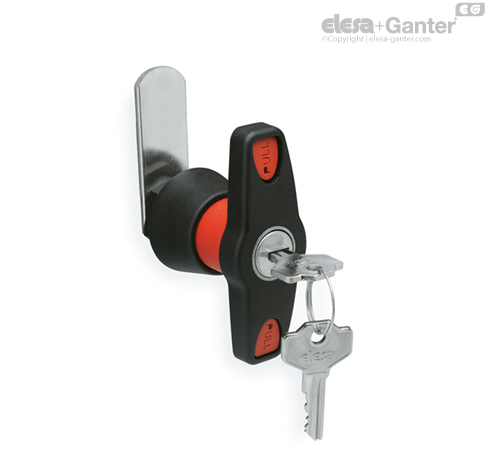

Latch-type handles with anti-rotation device CSMT-A are particularly suitable for applications on cabinets or doors subject to strong vibrations. The anti-rotation device prevents the door from opening accidentally due to vibrations when the latch is not locked.

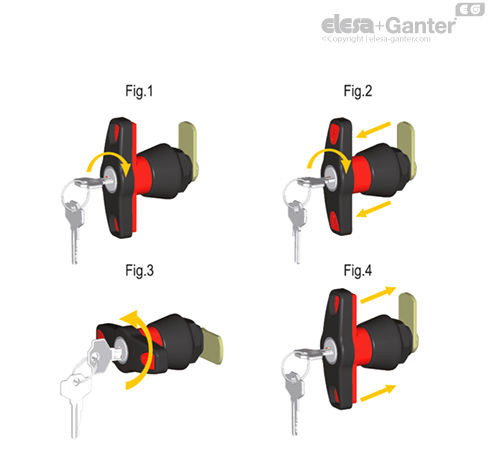

After opening the lock by means of the key (fig. 1) the handle can be turned by pulling the red body towards the operator (fig.2). By turning the handle in the lock position (fig.3), the anti-rotation mechanism is engaged automatically (fig.4).
Other executions
Posebne verzije na zahtev
Closing levers in other dimensions.
