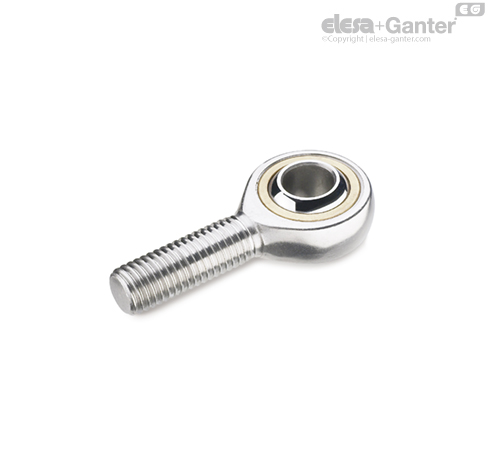

GN 648.6

Glave krogličnega zgiba iz plemenitega jekla z navojnim sornikom

Types (pairings)

• Type NH: Bronze / Steel lubrication possible

• Type WH: Bronze-PTFE / Steel self lubricated

• Type WK: Stainless Steel-PTFE / Stainless Steel self lubricated

Housing Stainless Steel AISI 431

forged, polished

Type NH (lubrication possible)

Bearing socket Bronze CuSn8

Internal ring Steel 100 Cr6

hardened, ground, polished

hard chrome plated

Type WH (self lubricated)

Bearing socket Bronze CuSN8

with PTFE-insert

Internal ring Steel 100Cr6

hardened, ground, polished

hard chrome plated

Type WK (self lubricated)

Bearing socket, Stainless Steel AISI 316Ti

with PTFE-insert

Internal ring

Stainless Steel AISI 420

hardened, ground, polished
