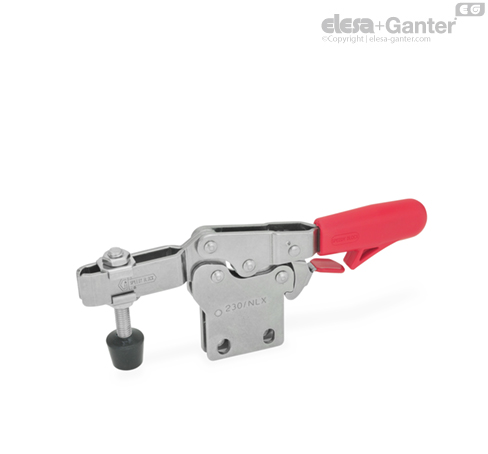

GN 820.4-NLC-NI Hitri vpenjalniki Stainless Steel, forked clamping arm, with two flanged washers and clamping screw

Toggle clamps GN 820.4 have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).

They work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action.

Toggle clamps in the U-bar version with two flanged washers (type NL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type NLC.

Toggle clamps in the type PL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 holders for clamping screws to hold the work piece in place.

Toggle clamps in the U-bar version with two flanged washers (type VL) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for type VLC.

• General information for toggle clamps

• Spindle assemblies

• Vpenjalni vijaki

• Holders for Clamping Screws GN 801 (for type NL and VL)

• Holders for Clamping Screws GN 809 (for Type PL)

• Clamping arm extenders GN 809.1 (for Type PL)

• Clamping arm extenders GN 801.1 (for type NL and VL)

• Clamping arm extenders GN 801.2 (for type NL and VL)

• Stainless Steel characteristics
