Specification
Types
- Type E: for one clamping bolt

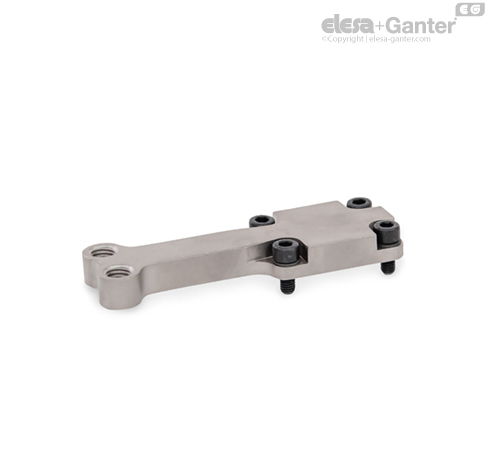

- Type Z: for two clamping bolts
Steel C 45
Chemically nickel plated NC
Socket cap screws DIN 912
Centering guide bushings
Steel, blackened
Information
The static holders GN 869.1 have been designed for use with power clamps GN 865 .
Static holders for two clamping bolts (Type Z) are preferably used in such applications where absolutely rigid clamping of a sheet metal component is essential. For the same purpose GN 605 with serrated ball pads are ideally suited.
Socket cap screws and centering guide bushings are included.
