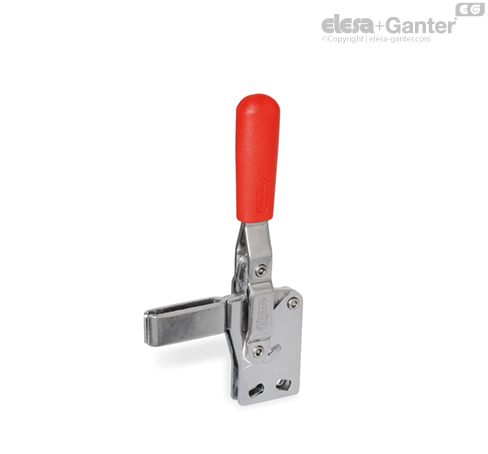

GN 810.1-NI Navpični vpenjalnik Plemenito jeklo

GN 810.1 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Vertical acting toggle clamps in the U-bar version with two flanged washers (Type B) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type BC.

Type F version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 clamp mounts to hold the work piece in place.

• General information for toggle clamps

• Spindle assemblies-

• GN 801 clamp mounts for toggle clamps (for Type B)

• GN 809 clamp mounts for toggle clamps (for Type F)
