GN-736.1
GN 736.1
Primična kolesa
78711-R,20
78710-R,10
78712-R,50
ozGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
78711-R,20
78710-R,10
78712-R,50
ozGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Oblika
Oznaka izvrtine
Oznaka
Ohišje kolesa
Aluminij
Pokrov
Umetna masa, svetlo siva
Collet / Hex nut
Medenina
Grub screw DIN 916
Iz plemenitega jekla
with internal hex and serrated point
Revolving cylindrical knob
Umetna masa, poliamid (PA)

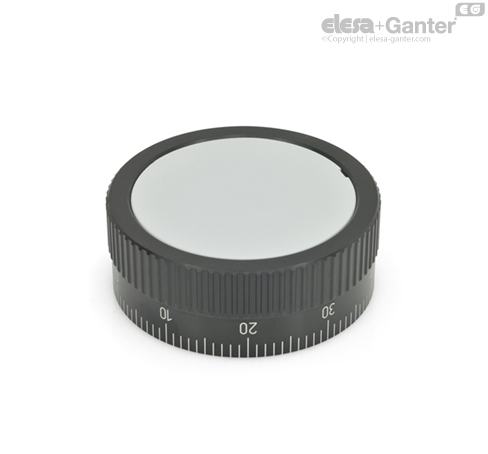

Control handwheels GN 736.1 are used for setting operations with low torque. Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the knob.
The model fitted with collet offers an absolutely reliable mounting on the shaft and at the same time allows an easy setting of the adjustable scale ring wheel. The scale is wear resistant and easily legible since the engraved alu coloured numbers contrast with the black anodized surface. Besides the standard scale (Coding S) the control handwheels can be supplied with any type of graduation.
Full details of the available graduations, numbering sequence, number position and type of scale see under "How to Order Graduations" .
