Specification
Identification no.
- No. 2: With stainless steel socket cap screw DIN 912
Aluminij
Powder coated
Black, RAL 9005, textured finish SW
Stainless Steel AISI CF-8 NI
Matte shot-blasted
Only with sleeve bearing
Sleeve bearing
Plastic (PTFE)
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Information

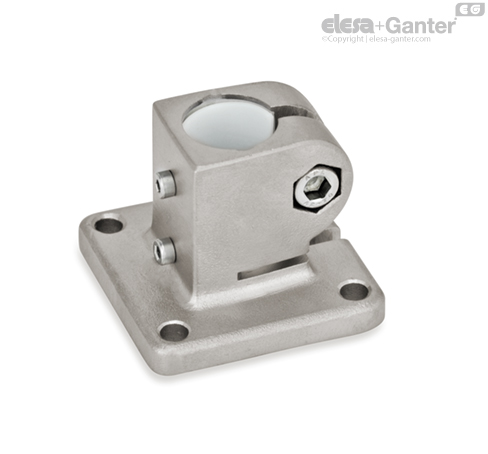

Base plate linear actuator connectors GN 162.1 are based on base plate connector clamps. The additionally provided fastening holes are used to connect to the drive key of a linear actuator. Bores with the designation „G“ are equipped with sleeve bearings.
With the screw location z, the play of the guide bores d1 can be adjusted or the linear actuator connectors can be clamped after adjustment.
