Specification
Identification No.
No. 2: With stainless steel socket cap screw DIN 912
Version in Aluminum
Aluminij
Powder coated
Black, RAL 9005, textured finish SW
Version in Stainless Steel
- Stainless steel AISI CF-8 NI
Sleeve bearing
Plastic (PTFE)
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Information

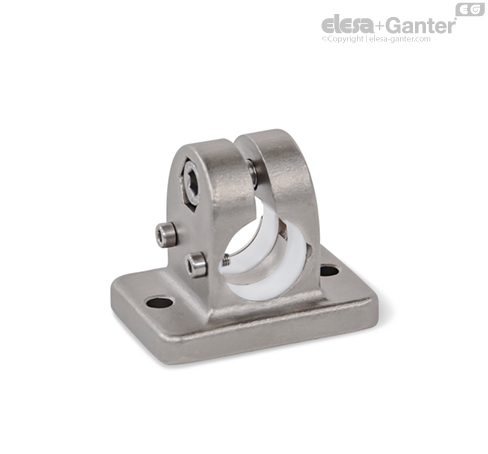

Flanged linear actuator connectors GN 145.1 are based on flanged connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.
With the screw location z, the play of the guide bores d1 can be adjusted or the linear actuator connectors can be clamped after adjustment.
For quick clamping without tools, the socket cap screw can be replaced by the adjustable hand levers GN 911 / GN 911.3 listed in the table as accessories.
