Specification
Identification No.
No. 2: With 2 stainless steel socket cap screws DIN 912
Version in Aluminum
Powder coated
Black, RAL 9005, textured finish SW
Version in Stainless Steel
Stainless steel AISI CF-8 NI
Matte shot-blasted
Only with sleeve bearing
Sleeve bearing
Plastic (PTFE)
Socket cap screw DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Information

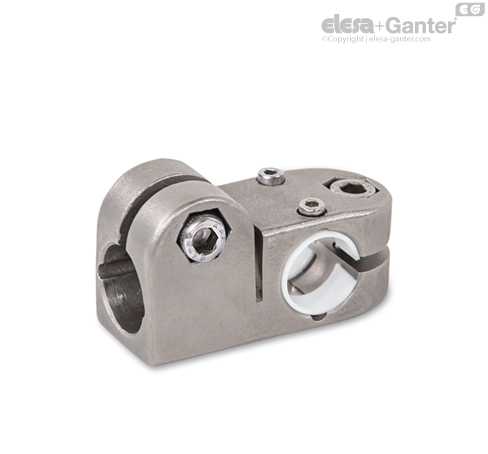

T-angle linear actuator connectors GN 191.1 are based on T-angle connector clamps. The additionally provided fastening holes are used to connect to the drive key of a linear actuator. Bores with the designation „G“ are equipped with sleeve bearings.
With the screw location z2, the play of the guide bores d1 can be adjusted or the linear actuator connectors can be clamped after adjustment.
For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 / GN 911.3 listed in the table as accessories.
