GN 111.2-A Pletenice With two key rings

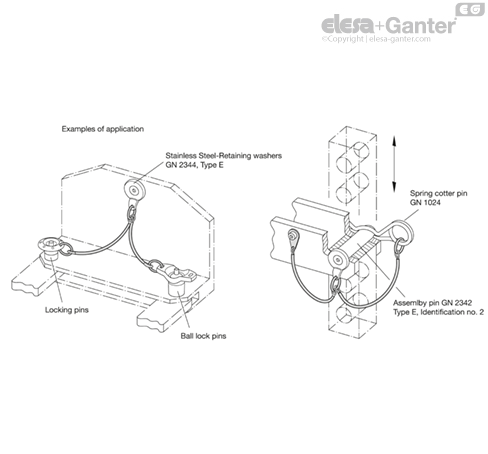

Retaining cables GN 111.2 are available in 5 different types and can therefore be used in a wide range of applications, e.g. for loss protection or as connecting and mounting cables.

The coating of versions TR and SW protects adjacent parts from chafing or other damage. The smooth surface is also pleasant to the touch. The black design is visually discreet and is also used in situations where the reflections on the surface are to be minimized.

On delivery the key rings are already mounted on the retaining cable. With type A, both rings have the same diameter d₁.

For all types the loops are reversed laterally and attached parallel to each other, which is not entirely considered in the simplified drawing. The load values given in the table are non-binding guide values and rule out any liability.

Retaining cables GN 111.2 with carabiner are available in 3 different types and can therefore be used in a wide range of applications, e.g. for loss protection or as connecting and fastening cables.

The retaining cable is firmly connected on one side to a carabiner GN 5299. With type M, the key ring is loosely enclosed with the retaining cable.

The orientation of the cable loops, mounting tabs and carabiners may differ from what is depicted in the drawing. The load values given in the table are non-binding guide values and rule out any liability.
